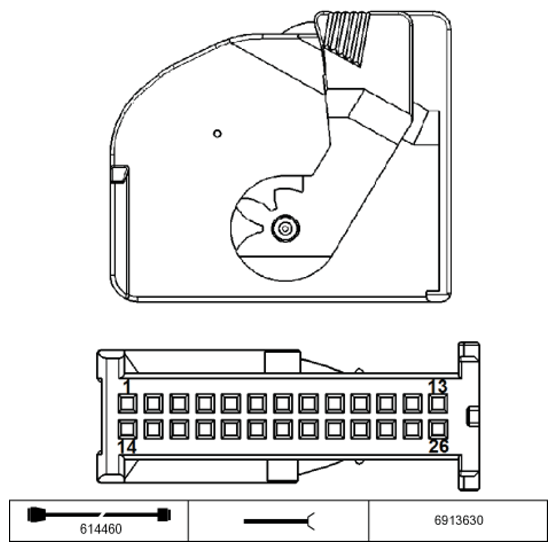

Convertible Top Module A41*2B Connector End View
Pin Assignments At Plug Connector A41*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | A | Supply, Hall sensor | Soft top locking unit |
| 6 | A | Supply, Hall sensor | Hall effect sensor, soft top stowed |
| 7 | A | Supply, Hall sensor | Hall effect sensor, soft top up |
| 8 | A | Supply, Hall sensor | Hall effect sensor, soft-top bow ready to stow |
| 9 | A | Supply, Hall sensor | Hall effect sensor, soft-top bow up |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | A | Supply, Hall sensor | Soft top locking unit |
| 13 | A | Supply, Hall sensor | Hall effect sensor, soft-top bow released |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | -- | Not used | |
| 18 | E | Hall sensor signal | Soft top locking unit |
| 19 | E | Hall sensor signal | Hall effect sensor, soft top stowed |
| 20 | E | Hall sensor signal | Hall effect sensor, soft top up |
| 21 | E | Hall sensor signal | Hall effect sensor, soft-top bow ready to stow |
| 22 | E | Hall sensor signal | Hall effect sensor, soft-top bow up |
| 23 | -- | Not used | |
| 24 | -- | Not used | |
| 25 | E | Hall sensor signal | Soft top locking unit |
| 26 | E | Hall sensor signal | Hall effect sensor, soft-top bow released |
