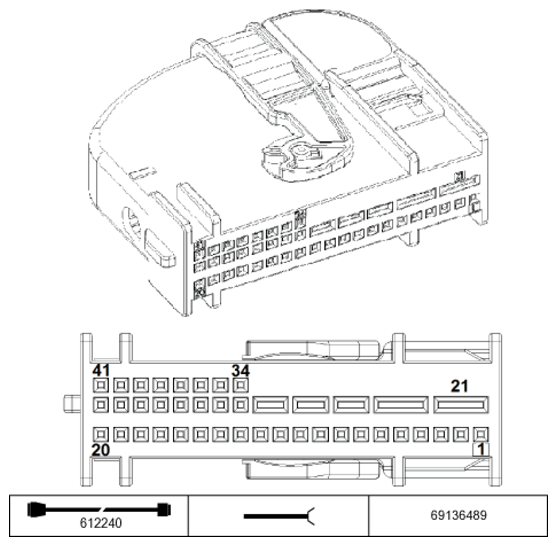

Convertible Top Module A41*1B Connector End View
Pin Assignments At Plug Connector A41*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply, terminal 15 | Fuse F143 |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | A | Supply Soft top compartment lid closed microswitch | Soft top compartment lid closed microswitch |
| 5 | -- | Not used | |
| 6 | A | Supply, Hall sensor | Hall sensor - open soft top compartment lid |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Switch signal | Convertible top control unit |
| 14 | E | Switch signal | Convertible top control unit |
| 15 | E | Switch signal | Switch, soft top compartment floor |
| 16 | -- | Not used | |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | E/A | K-CAN2 bus | Body CAN2 bus connection |
| 20 | E/A | K-CAN2 bus | Body CAN2 bus connection |
| 21 | M | Ground | Ground point |
| 22 | E | Power supply, terminal 30B | Fuse F141 |
| 23 | A | Activation Soft top locking unit | Soft top locking unit |
| 24 | A | Activation Soft top locking unit | Soft top locking unit |
| 25 | -- | Not used | |
| 26 | -- | Not used | |
| 27 | -- | Not used | |
| 28 | E | Hall sensor signal | Hall sensor - open soft top compartment lid |
| 29 | -- | Not used | |
| 30 | E | Switch signal | Soft top compartment lid closed microswitch |
| 31 | -- | Not used | |
| 32 | -- | Not used | |
| 33 | -- | Not used | |
| 34 | A | Activation | Valve 1 |
| 35 | A | Activation | Valve 2 |
| 36 | A | Activation | Valve 3 |
| 37 | -- | Not used | |
| 38 | A | Activation | Relay 2 for soft top drive |
| 39 | A | Activation | Relay for soft top drive |
| 40 | -- | Not used | |
| 41 | -- | Not used |
