61 31 134 Removing and installing/replacing USB audio interface connecting socket

Necessary preliminary tasks:

• Remove COVER FOR STORAGE COMPARTMENT

Release connecting socket (1) on both sides of latch mechanism (2).

Press connecting socket (1) out of storage compartment (3) in direction of arrow.

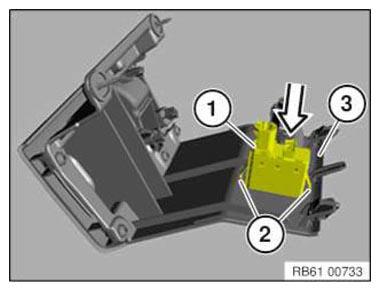

Fig 1: Pressing Connecting Socket Out Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Connecting socket latch mechanisms (1) must not be damaged or missing
• Make sure connecting socket (1) is correctly fitted in storage compartment

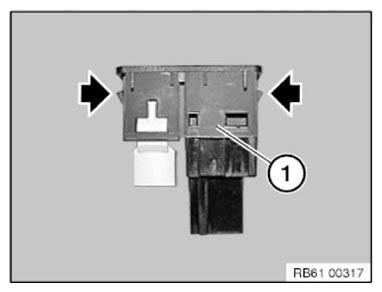

Fig 2: Locating Connecting Socket Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
