(Mounting engine on assembly stand)
Special tools required:
- 00 2 300
- 11 0 020
- 11 8 930
- 11 8 931
- 11 8 932
WARNING:
Remove engine using special tool 11 0 020 and suitable lifting gear and mount on special tool 11 8 930.
Engine weighs approx. 280 kg.
Engine weighs approx. 280 kg.
Necessary preliminary tasks:
- Remove ENGINE .
- Clean contact surfaces.

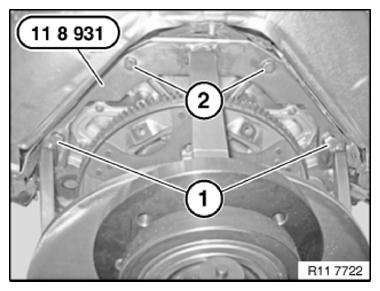

Use special tool 11 8 931 to mount special tool 11 8 932.
Insert screws (1 and 2).
Tightening torque: 11 11 9AZ/10AZ .

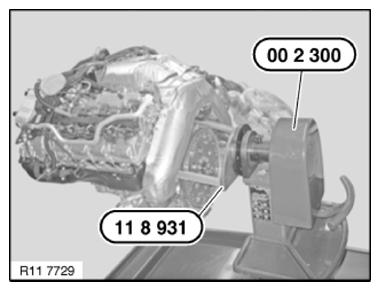

Use special tool 11 8 931 to mount engine on special tool 00 2 300.
Tightening torque: 11 11 11AZ .
