Enter Vehicle Identification Number

Special tools required:

83 30 2 359 240

NOTE: If the stamped vehicle identification number is removed during a repair, it must be stamped in again.
Read and comply with General Notes; refer to the appropriate service information.

Preliminary work needed:

Remove FRONT RIGHT SPRING STRUT .

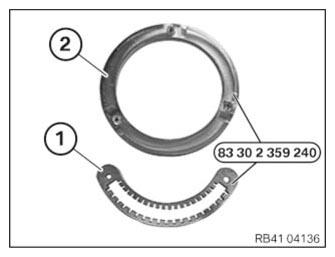

Set of special tools 83 30 2 359 240 for stamping vehicle identification number consists of:

Guide plate (1)

Counter-support plate (2)

screw

Courtesy of BMW OF NORTH AMERICA, INC.

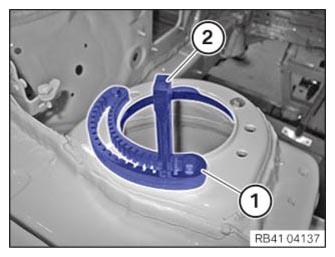

Position counter-support plate on spring strut from bottom.

Position guide plate (1) on spring strut support plate from top and screw to counter-support plate.

Insert punch numbers (2) individually into guide plate and stamp vehicle identification number.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the event of component or body replacement by the workshops/garages, clearly delimit the vehicle identification number at front and rear by stamping a "+" in place of the BMW symbol.
Note national regulations.
