32 33 000 Removing And Installing/Replacing Steering Wheel

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Move wheels/steering wheel into straight-ahead driving position.

Disconnect plug connection (1).

Release screw (2) and remove steering wheel.

Installation note:

Make sure connecting line(s) is/are correctly laid.

Tightening torque: 32 33 1AZ .

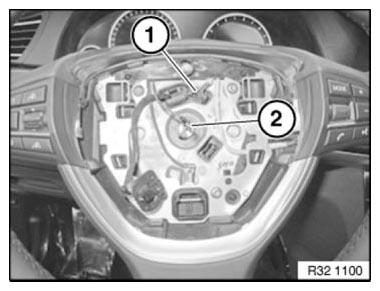

Fig 1: Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before fitting steering wheel on steering column, ensure correct cable routing.

Align steering wheel by way of marking (1) to steering column marking (2) and attach.

Fig 2: Aligning Steering Wheel And Colum Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
