32 41 285 Replacing Level Switch For Dynamic Drive Fluid Reservoir

Necessary preliminary tasks:

Release screws (1) and (2).

Remove washers.

Tightening torque: 32 41 1AZ/2AZ

Remove fluid reservoir by pulling upwards.

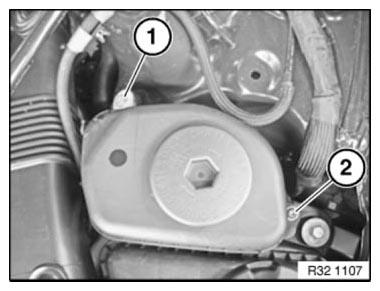

Fig 1: Screws Of Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
