Center console operating facility
The driving experience switch controls the Dynamic Driving Control. The Dynamic Driving Control boasts the following new features: All of the drive and driving stability control systems installed in the vehicle are activated. The central control unit for this is the Integrated Chassis Management (ICM). The driving experience switch and DTC button are electrically connected to the ICM.
The following systems are influenced by Dynamic Driving Control:
- Accelerator pedal module (DME)
- Automatic gearbox (EGS)
- Steering (EPS)
- Vertical Dynamics Management (VDM) via the shock absorbers
- Dynamic stability control (DSC)

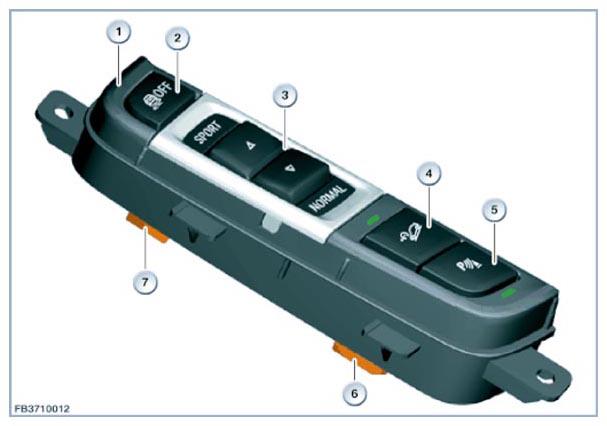

Shown F25
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | DSC button (OFF) |
| 3 | Drive dynamics control switch |
| 4 | HDC button (Hill Descent Control) |
| 5 | PDC button (Park Distance Control) |
| 6 | 4-pin plug connection |
| 7 | six-pin plug connection |
F20 shown
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | 10-pin plug connection |
| 3 | Parking Assist button |
| 4 | Button for bumper camera |
| 5 | Driver experience switch with ECO PRO mode |
| 6 | Button DSC OFF |
