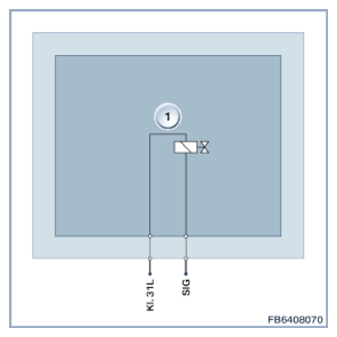

Structure and inner electrical connection
The front refrigerant shutoff valve is a solenoid valve.
The front refrigerant shutoff valve is closed when de-energised.
The front refrigerant shutoff valve is connected to the vehicle electrical system by means of a 2-pin plug connection.
| Index | Explanation |
|---|---|
| 1 | Refrigerant shutoff valve, front |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 31L | Terminal 31L, load earth |
| SIG | Activation, refrigerant shutoff valve, front |
