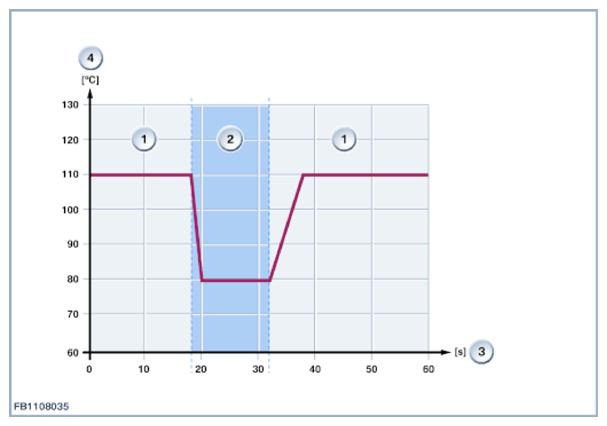

Temperature profile and setpoint values
The engine control activates the heating element via a characteristic map depending on the current driving situation.
| Index# | Explanation | Item | Explanation |
|---|---|---|---|
| 1 | Heater resistor not activated | 2 | Heater resistor activated |
| 3 | Time | 4 | Coolant temperature |
Please note the following setpoint values for the coolant temperature:
| Variable | Value |
|---|---|
| Voltage range | 9 to 16 volts |
| Opening temperature not heated | 97 °C |
| Minimum stroke | 8 mm |
| Minimum stroke in control range | 4, 5 mm |
| Maximum output current | 20 mA |
| Temperature range | -40 °C to 150 °C |
