Functional networking
The following graphic shows the functional networking for contact-free tailgate opening.

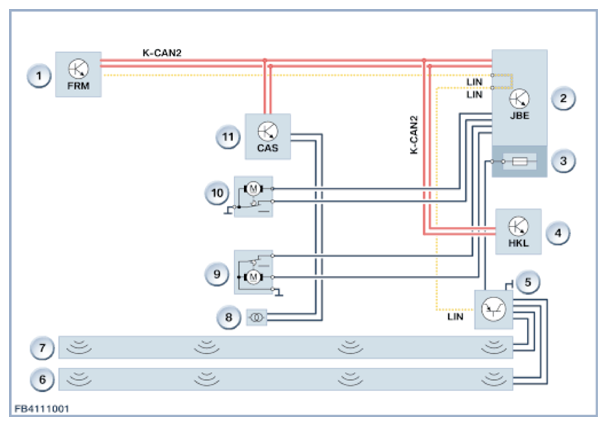

Example F11
| Item | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Junction Box Electronics (JBE) |
| 3 | Power distribution box |
| 4 | Automatic operation of tailgate (HKL) |
| 5 | Evaluation electronics, contact-free tailgate opening |
| 6 | Lower sensor, contact-free tailgate opening |
| 7 | Upper sensor, contact-free tailgate opening |
| 8 | Bumper aerial |
| 9 | Tailgate/tailgate lock |
| 10 | Rear window locking |
| 11 | Car access system (CAS) |

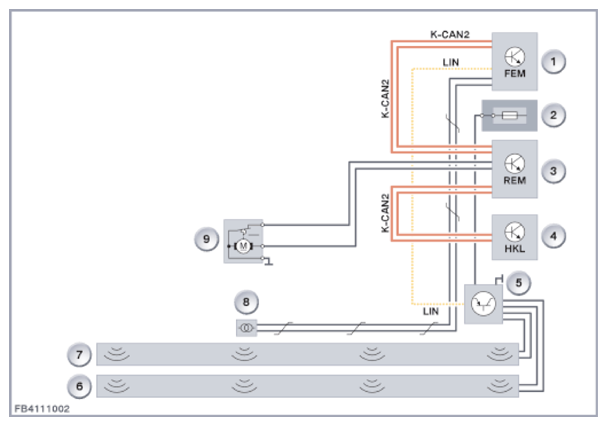

Example F30
| Item | Explanation |
|---|---|
| 1 | Front Electronic Module (FEM) |
| 2 | Power distribution box, right rear |
| 3 | Rear electronic module |
| 4 | Automatic operation of tailgate (HKL) |
| 5 | Evaluation electronics, contact-free tailgate opening |
| 6 | Lower sensor, contact-free tailgate opening |
| 7 | Upper sensor, contact-free tailgate opening |
| 8 | Bumper aerial |
| 9 | Tailgate/tailgate lock |
