Media test

After successful connection to an ISID, the IMIB makes various media files available via USB.

Select CD/Multimedia in the menu at the vehicle via the controller.

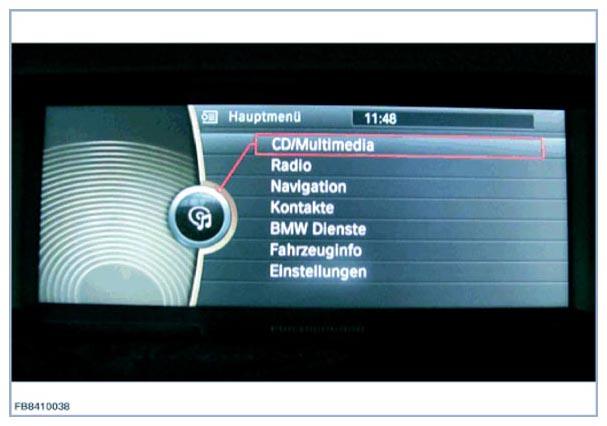

Fig 1: Selecting CD/Multimedia Menu

Courtesy of BMW OF NORTH AMERICA, INC.

Then select External Devices .

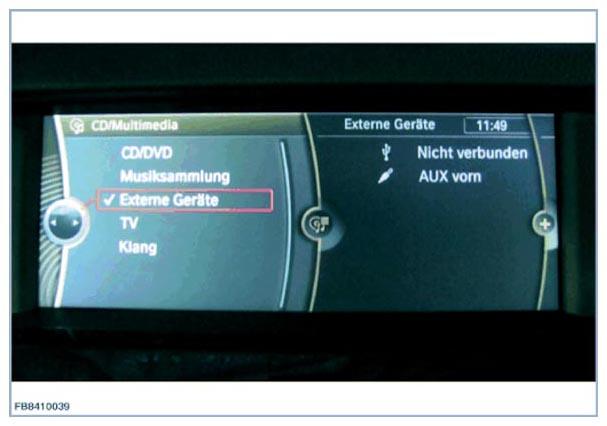

Fig 2: Selecting External Devices Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Then follow the instructions in the testing procedure. The test takes approx. 2 minutes and cannot be interrupted.

If connection to the vehicle was successful, the following graphic is displayed during the media test . The IMIB is displayed on the display of the vehicle as a connected device under the name {IMIB SOUND} .

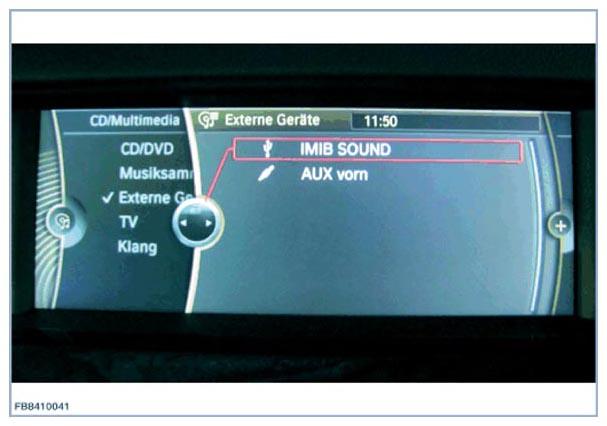

Fig 3: Display - IMIB Sound Screen

Courtesy of BMW OF NORTH AMERICA, INC.

{IMIB SOUND} must be selected using the controller in order to display and play the music files. Check volume control in the vehicle. A total of 3 media files and a sub-directory {SUBDIR} with a media file as content are offered. To find the subdirectory, select {IMIB SOUND} and then select Browse directories . Depending on the vehicle equipment, album cover information is displayed in the form of a graphic as well as the media descriptions (genre, album and track).

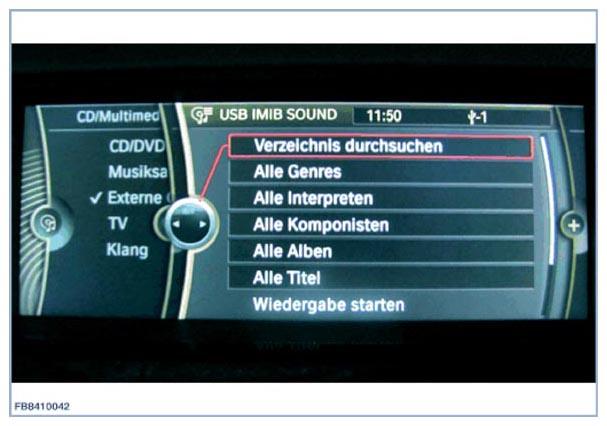

Fig 4: Selecting IMIB Sound Screen (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

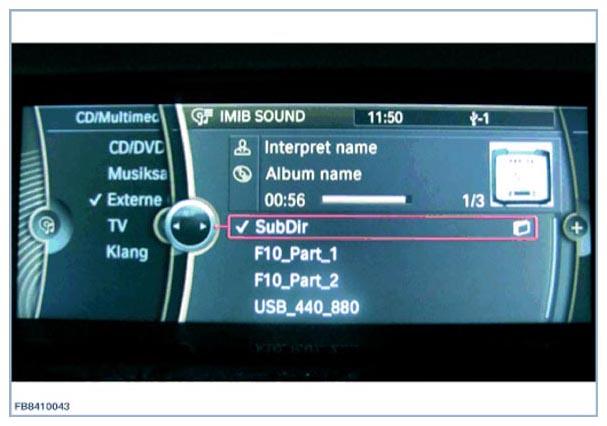

Fig 5: Selecting IMIB Sound Screen (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

The media test takes about 2 minutes to complete. Progress of the test is shown in the testing procedure. It must also be possible to play the music files in the vehicle within those 2 minutes. Pay attention to the volume setting in the vehicle when doing this!

NOTE: On completion of the test, data exchange between vehicle and IMIB is terminated automatically. The IMIB is no longer shown on the display of the vehicle as {IMIB SOUND} .

The load test is carried out after the media test. Follow the instructions in the testing procedure.
