System overview

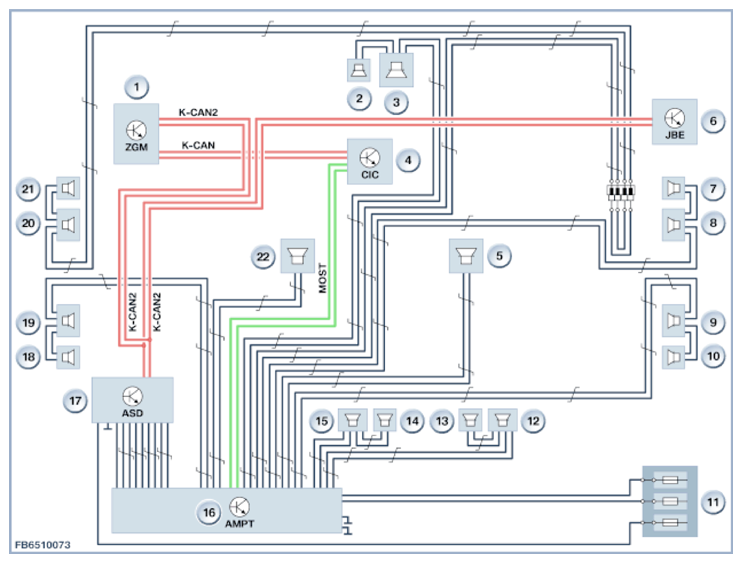

The following graphic shows an example of a system overview of a Top HiFi system.
| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Tweeter, front center |
| 3 | Mid-range speaker, front center |
| 4 | Headunit |
| 5 | Bass speaker, front right |
| 6 | Junction Box Electronics (JBE) |
| 7 | Tweeter, front door, right |
| 8 | Mid-range speaker, front door, right |
| 9 | Surround mid-range speaker, rear door, right |
| 10 | Surround tweeter, rear door, right |
| 11 | Power distribution box, rear |
| 12 | Mid-range speaker, storage shelf, right |
| 13 | Tweeter, storage shelf, right |
| 14 | Tweeter, storage shelf, left |
| 15 | Mid-range speaker, storage shelf, left |
| 16 | Top HiFi amplifier (AMPT) |
| 17 | Active Sound Design (ASD) |
| 18 | Tweeter, rear door, left |
| 19 | Surround mid-range speaker, rear door, left |
