System overview

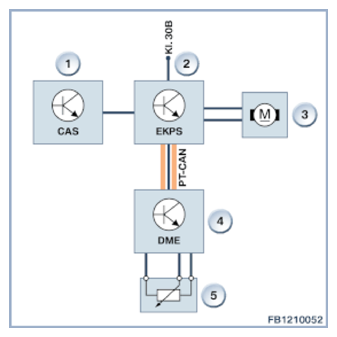

Fig 1: EKPS - Circuit Diagram
G09909992Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Car Access System (CAS)
2 Electric fuel pump
3 Electronic fuel pump
4 Digital engine electronics (DME)
5 Fuel low-pressure sensor
