Temperature of operating ranges

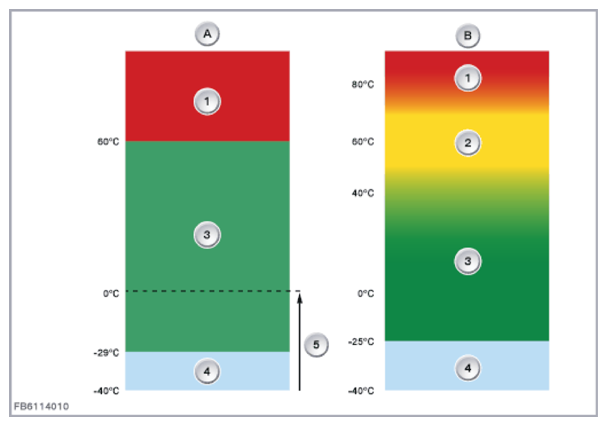

The following graphic shows the operating range temperature comparison between an AGM battery and a lithium ion battery.
In a warm surrounding area, the lithium ion battery has a higher charge capacity and discharge capacity. This results in a higher power consumption and a greater energy recovery potential.
| Item | Explanation |
|---|---|
| A | AGM battery |
| B | Lithium ion battery |
| 1 | Damage |
| 2 | Storage (no electric operation) |
| 3 | Normal operation |
| 4 | Limited power |
| 5 | Only in a high state of charge |
