Cut-off relay of starter unit

The auxiliary battery and the starter generator are connected to the 12 V vehicle electrical system via the cut-off relay. The cutoff relay is activated by the electrical machine electronics (EME) via a control line. When activated the cut-off relay is closed. The cut-off relay is supplied by the rear right power distribution box with terminal 30B.

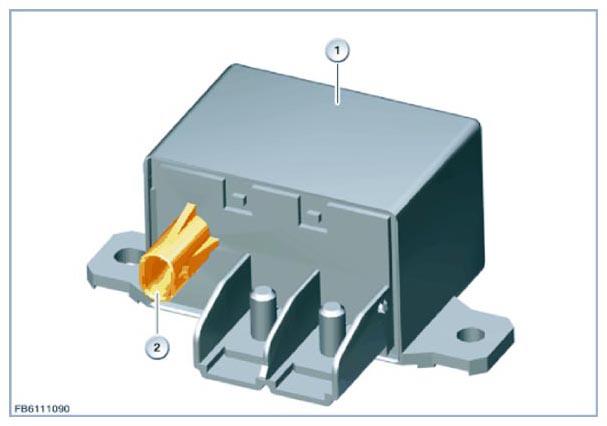

Fig 1: Identifying Plug Connection And Starter Unit
G09910234Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Cut-off relay
2 two-pin plug connection
