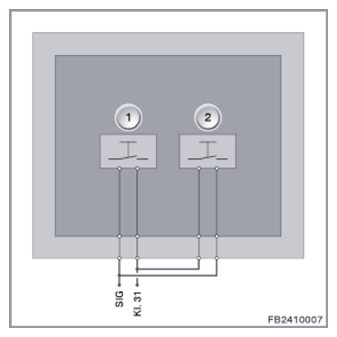

Structure and inner electrical connection
Each shift paddle has a 2-pin plug connection. The signals are resistant-encoded.
Courtesy of BMW OF NORTH AMERICA, INC.
| Item |
Explanation |
| 1 |
Left shift paddle (downshift) |
| 2 |
Right shift paddle (upshift) |
PIN REFERENCE
| Pin |
Explanation |
| SIG |
Signal line (upshift or shift down) |
| Kl. 31 |
Grounding cable |
