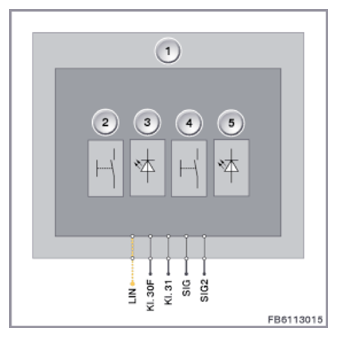

Structure and inner electrical connection
The assist system operating facility is connected to the vehicle electrical system by means of a 6-pin plug connection. The LIN bus connects the operating facility of the assist system with the Body Domain Controller (BDC).
The power distribution box on the Body Domain Controller (BDC) supplies the driver assistance system operating facility with terminal 30F.
| Item | Explanation |
|---|---|
| 1 | Assist systems operating facility |
| 2 | Driver assistance system operating facility button |
| 3 | Function indicator light button of driver assistance system operating facility |
| 4 | Hazard warning switch |
| 5 | Function indicator light of hazard warning switch |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| Terminal 30F | Shutdown of terminal 30F in event of failure |
| Kl. 31 | Ground connection (Terminal 31) |
| LIN | LIN bus |
| SIG | Signal, hazard warning switch |
| SIG2 | Signal of function indicator light |
| 1 pin not used. | |
