Brief component description
The reversible electromotive automatic reel is a mechatronic system. The reversible electromotive automatic reel consists of a automatic reel, electric motor with gearbox and an integrated control unit.
The following components are described:
- Reversible electromotive automatic reel control unit (REMAFA and REMABF)
- Drive reversible electromotive automatic reel

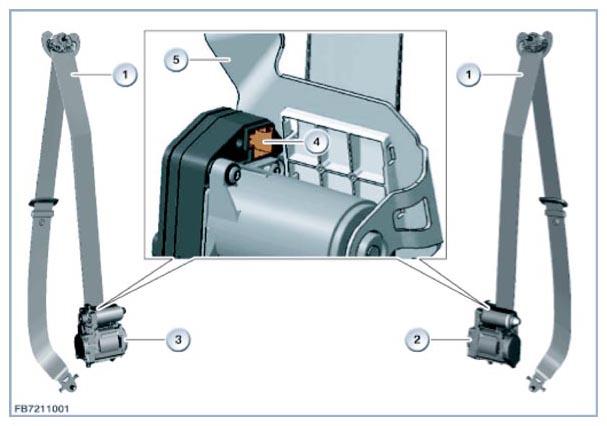

The following graphic shows the reversible electromotive automatic reel and the seat belt.
| Item | Explanation |
|---|---|
| 1 | Seat Belts |
| 2 | Reversible electromotive automatic reel, right (REMABF) |
| 3 | Reversible electromotive automatic reel, left (REMAFA) |
| 4 | Five-pin plug connection on the control unit of the reversible electromotive automatic reel, left and right (REMAFA and REMABF) |
| 5 | Retaining plate |
