Abs/ASC+T Hydraulic Unit: Removal

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before starting work, read out fault memory of ABS/ASC+T control module and print out diagnostic record.
  1. Turn toggle (1) through approximately 90 degrees and remove microfilter cover (2) towards front. See Fig 1.
  2. Remove microfilter element (1). See Fig 2.
  3. Unclip retainers (1) and feed cable out of cable duct. See Fig 3.
  4. Release screws (1) and remove microfilter housing towards front. See Fig 4.
  5. Detach rubber strip (1). Release locks (2) and pull side trim forwards a little. See Fig 5.
  6. Remove screws (1 and 2) and lift out heater bulkhead. See Fig 6.
  7. Remove vacuum line and B+ line from assembly compartment partition wall. Turn seals (1) through 90 degrees and thus unlock. Remove assembly compartment partition wall (2) towards top. See Fig 7.
  8. Remove brake master cylinder. See . MASTER CYLINDER
  9. Mark location of all brakelines at ABS/ASC+T hydraulic unit. Disconnect brake lines from ABS/ASC+T hydraulic unit and plug all openings.
  10. Unfasten and disconnect plug connection (1). Remove brakelines with rubber grommet from metal body and press in direction of engine. DO NOT bend brakelines. Release hexagon screw (2) and remove ABS/ASC+T unit towards top. See Fig 8.
  11. Remove screws (1) and carefully remove control module (2) from hydraulic unit (3). See Fig 9.
  12. Release screws (1). See Fig 10.
  13. Remove screw (1) and remove bracket (2) from hydraulic unit (3). See Fig 11.

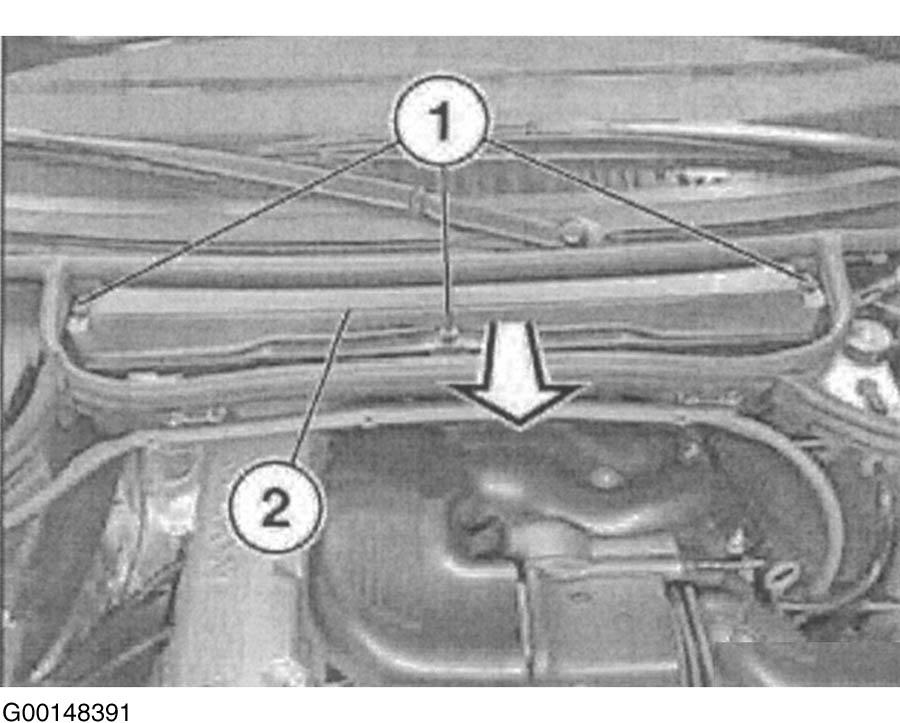

Fig 1: Removing Microfilter Cover
G00148391Courtesy of BMW OF NORTH AMERICA, INC.

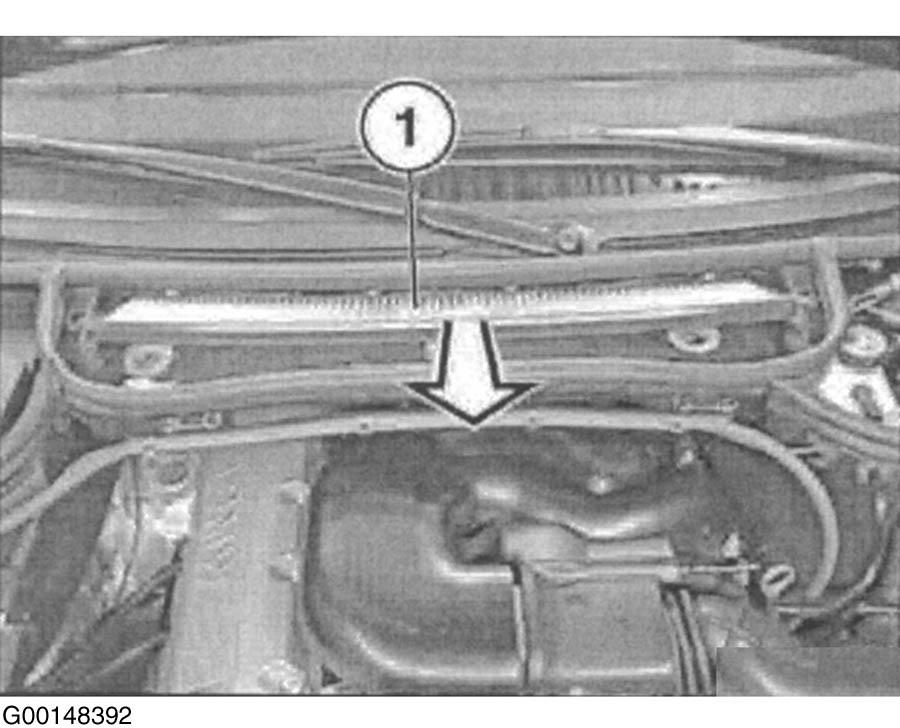

Fig 2: Removing Microfilter Element
G00148392Courtesy of BMW OF NORTH AMERICA, INC.

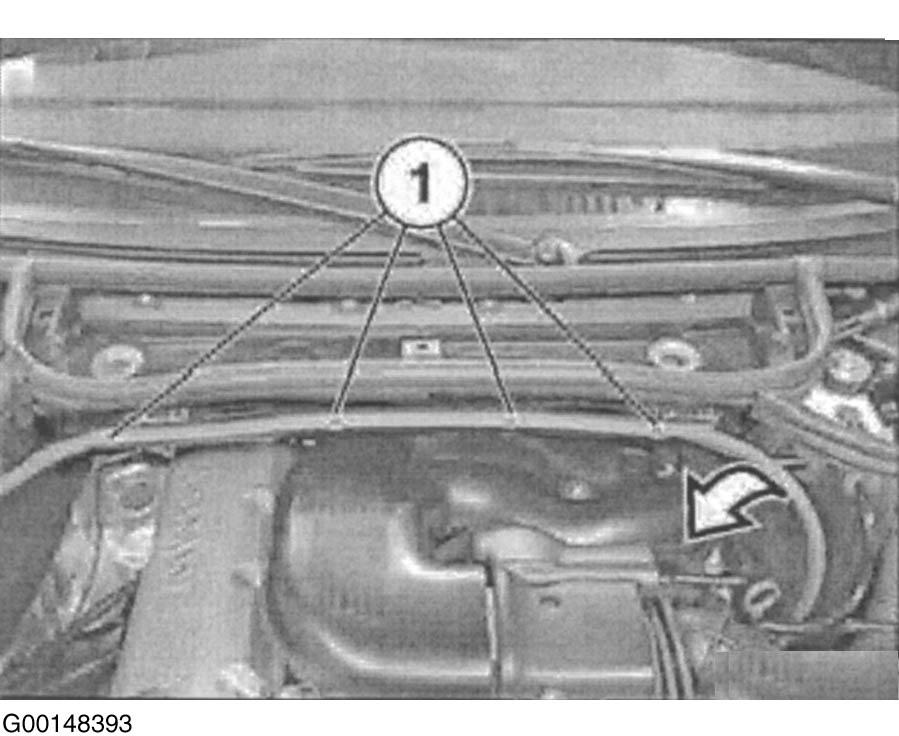

Fig 3: Removing Cable From Cable Duct
G00148393Courtesy of BMW OF NORTH AMERICA, INC.

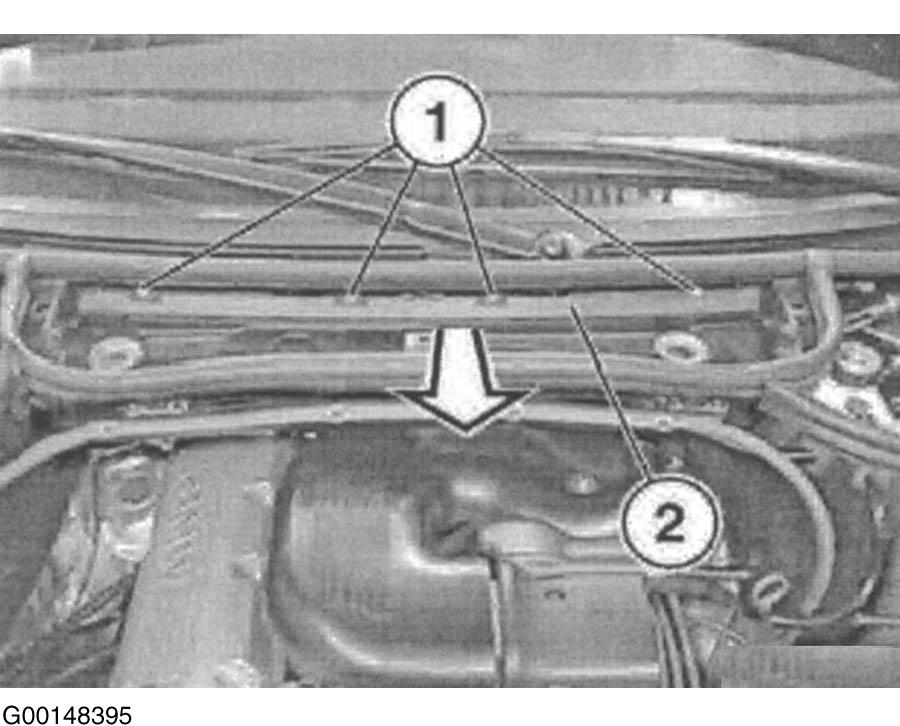

Fig 4: Removing Microfilter Housing
G00148395Courtesy of BMW OF NORTH AMERICA, INC.

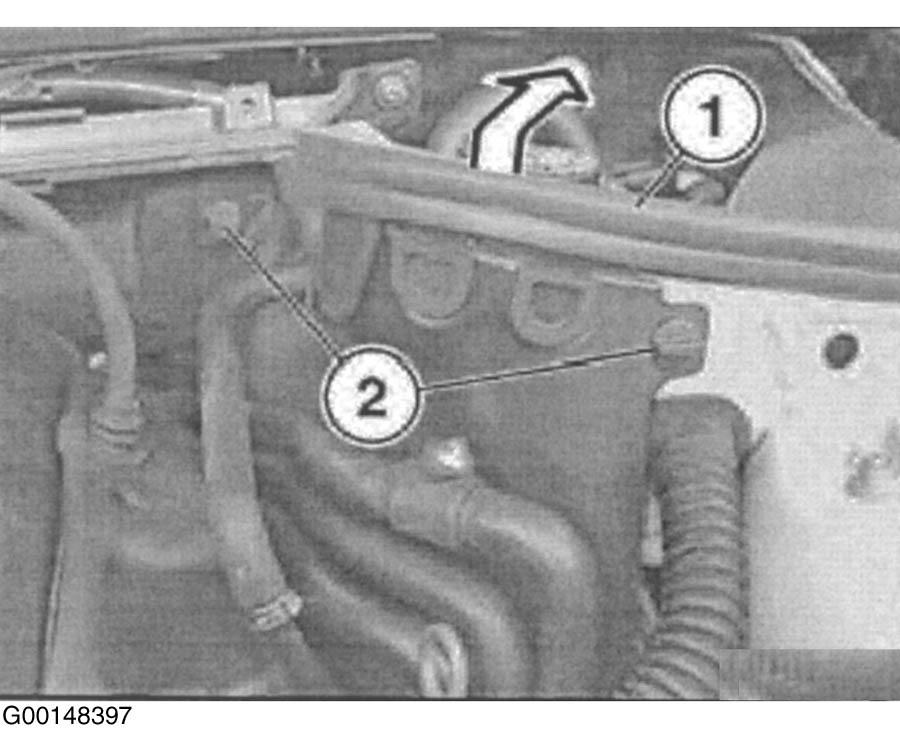

Fig 5: Releasing Locks
G00148397Courtesy of BMW OF NORTH AMERICA, INC.

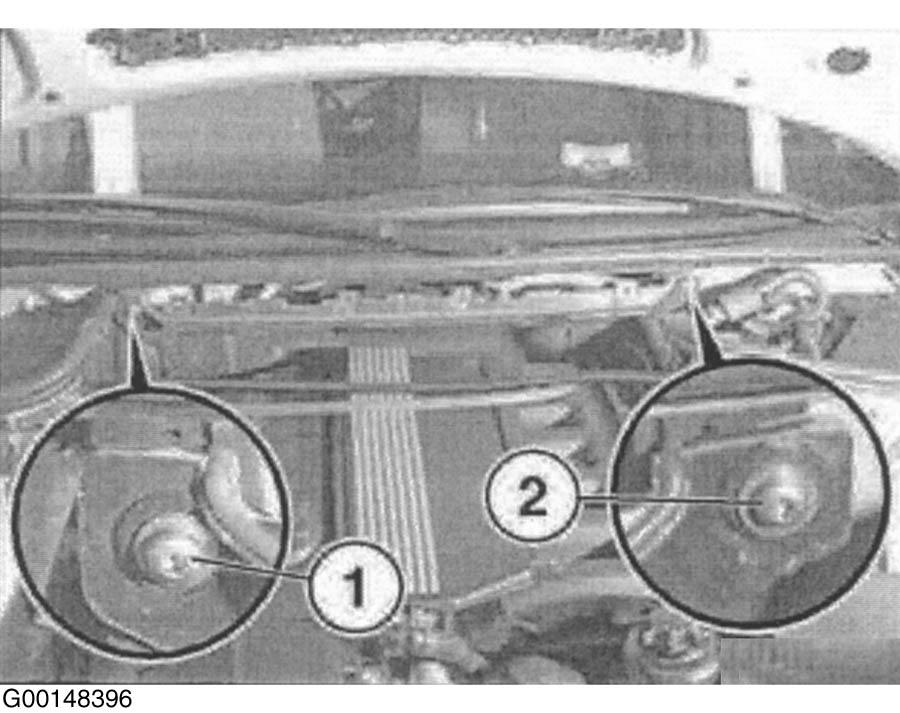

Fig 6: Removing Heater Bulkhead
G00148396Courtesy of BMW OF NORTH AMERICA, INC.

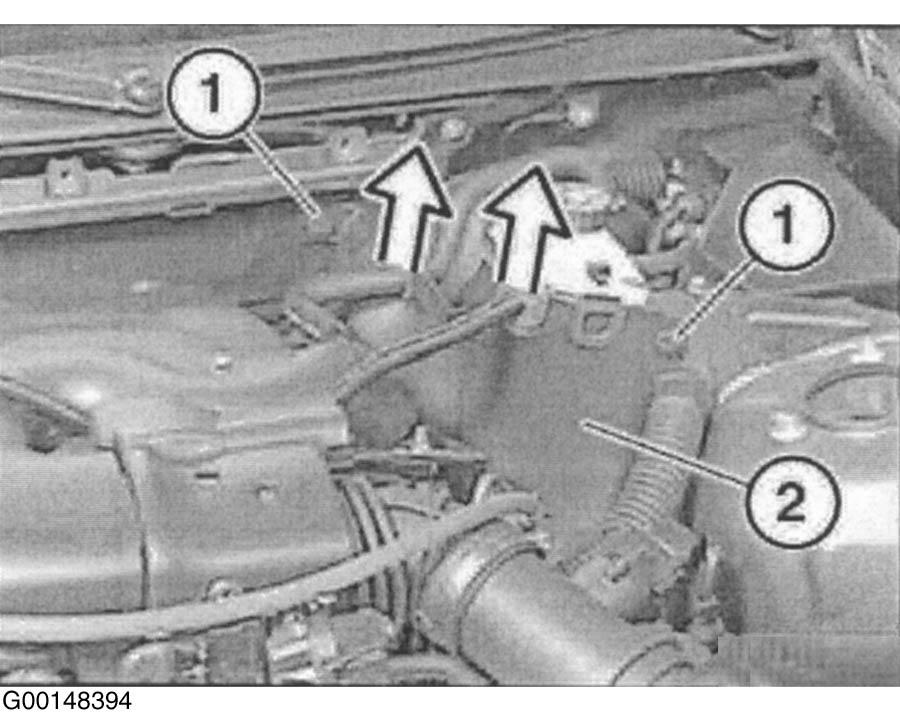

Fig 7: Removing Assembly Compartment Partition Wall
G00148394Courtesy of BMW OF NORTH AMERICA, INC.

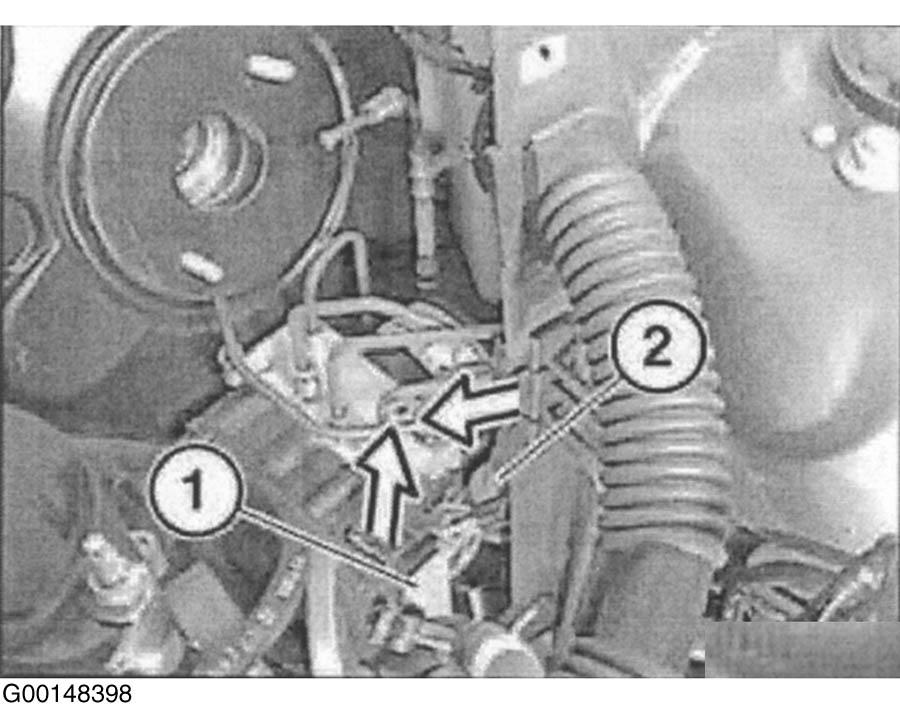

Fig 8: Removing ABS/ASC+T Hydraulic Unit
G00148398Courtesy of BMW OF NORTH AMERICA, INC.

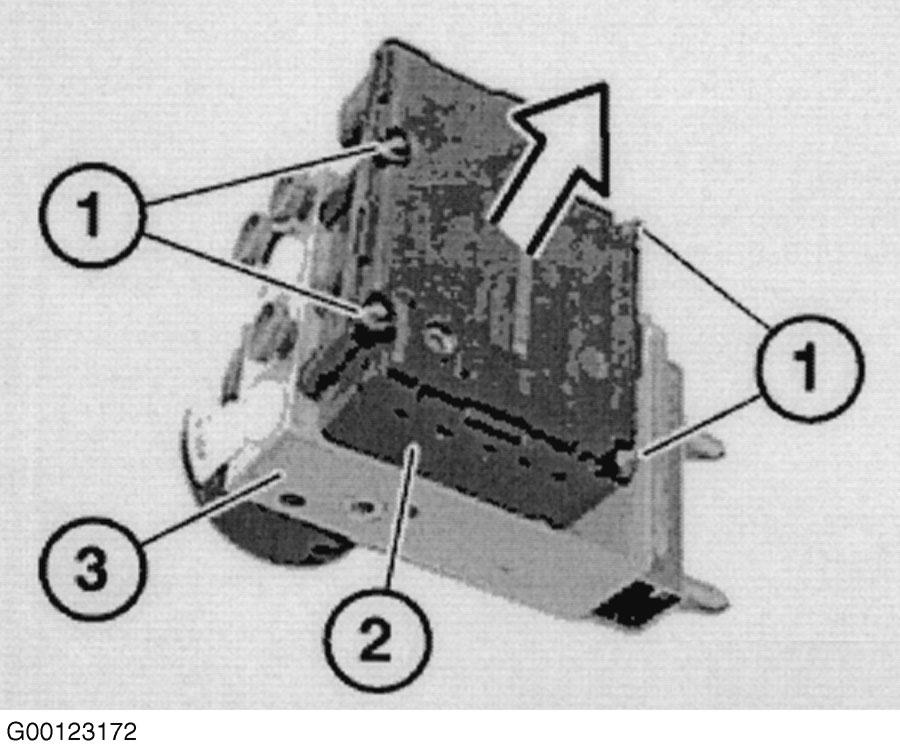

Fig 9: Removing ABS/ASC+T Control Module
G00123172Courtesy of BMW OF NORTH AMERICA, INC.

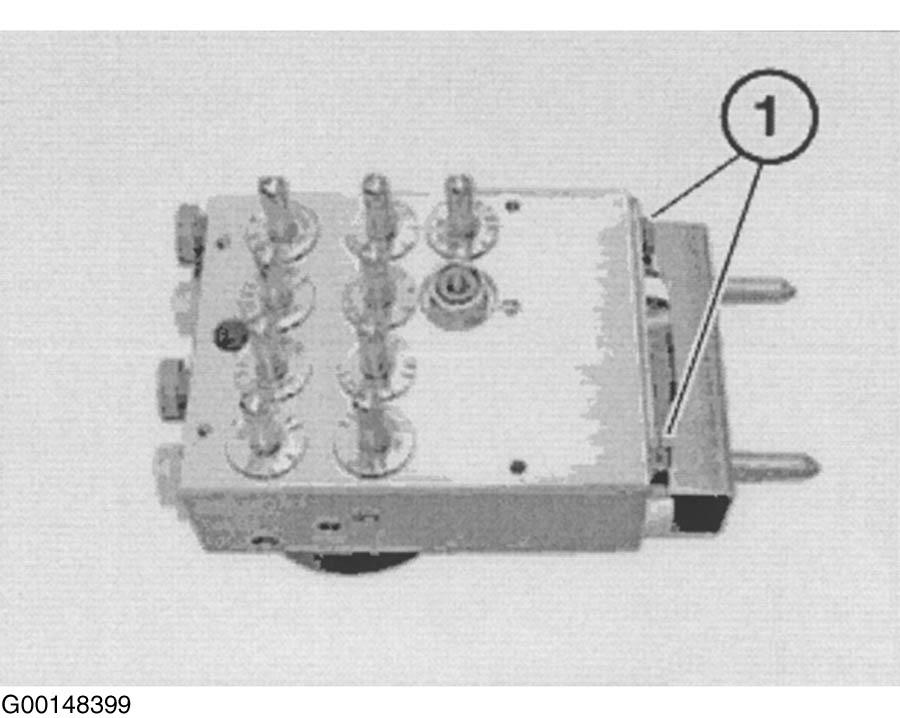

Fig 10: Releasing Screws
G00148399Courtesy of BMW OF NORTH AMERICA, INC.

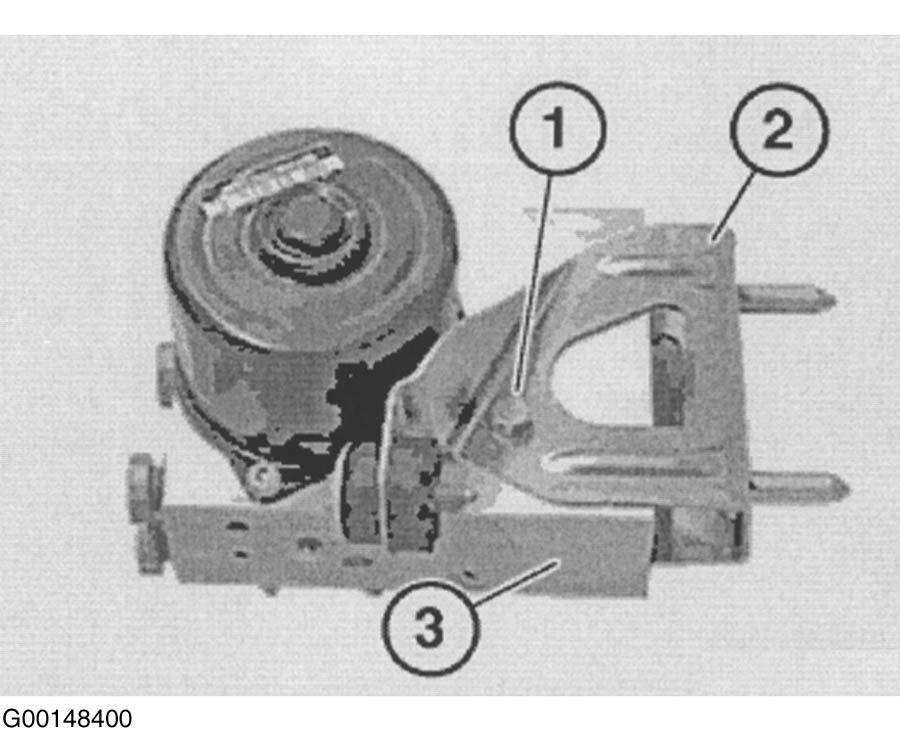

Fig 11: Removing Bracket From Hydraulic Unit
