32 31 003 Removing and installing/replacing upper section of steering column shroud

Move steering column in "bottom" and "extended" position.

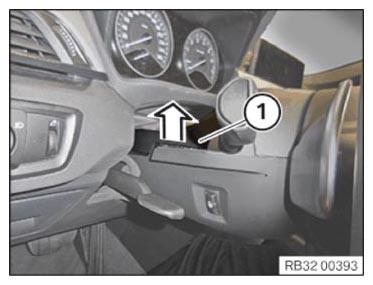

Push steering column shroud (1) upwards at rear and unclip.

Repeat process on right side.

Fig 1: Pushing Steering Column Shroud

Courtesy of BMW OF NORTH AMERICA, INC.

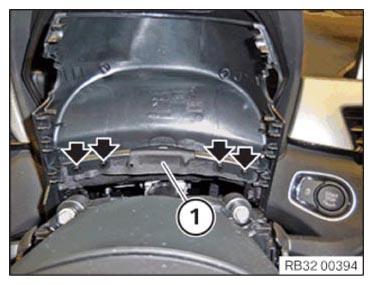

Unclip steering column gap cover (1) out of steering column shroud upper section.

Fig 2: Removing Steering Column Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.
