32 00... General chassis and suspension definitions

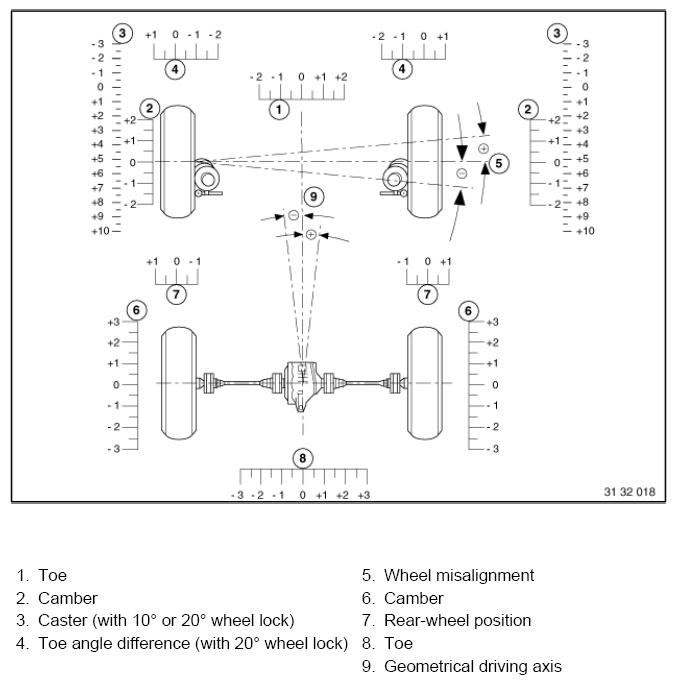

Fig 1: Identifying Chassis And Suspension Dimensions

G10146731

Courtesy of BMW OF NORTH AMERICA, INC.
