Plug connections, seat module

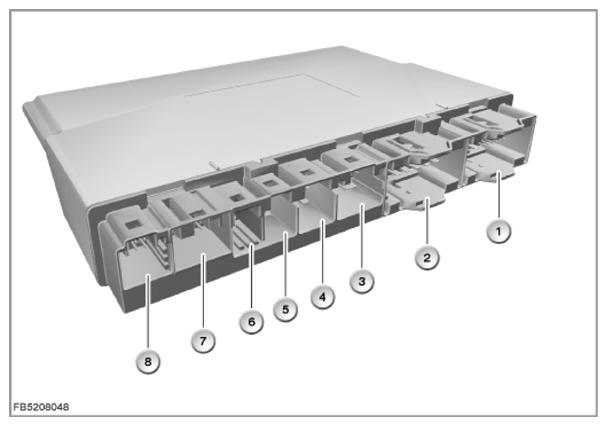

Fig 1: Identifying Seat Module Plug Connections
G09872901Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Backrest
2 Seat cushion
3 Voltage supply
4 Seat cushion heating
5 Backrest heating
6 Active seat ventilation
7 Active seat (massage) and lumbar support
8 Switch combination for seat adjustment
