Seat function check

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 150 .

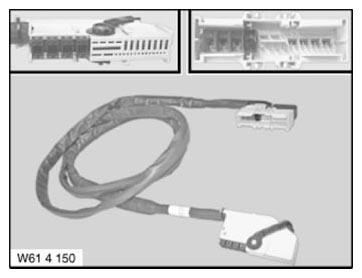

Fig 1: Identifying Adapter Cable (61 4 150)
G08472389Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 150 .
