11 00 670 Secure engine in installation position

Special tools required:

00 6 100
00 6 130
00 6 050
00 6 070-072
00 6 070-071
00 6 050-053

WARNING: Danger of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

NOTE:

Numbering system for special tools has been re-encoded.

Fig 1: Securing Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Special tools

Necessary preliminary tasks:

Secure the engine compartment lid in the service position.
Remove front UNDERBODY PROTECTION .
F33 convertible only, remove frontend struts.

Assemble cross-member 00 6 100 with the special tools, 00 6 130 , 00 6 050, 00 6 070-072, 00 6 070-071, 00 6 050-053.

Unclip Bowden cable (1) for hood opening.

Fig 2: Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Positioning Transverse Member (00 6 100)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit cross-member 00 6 100 with a 2nd person helping.

Screw towing hook (1) into engine block.

Attach chain to towing eye.

Fig 4: Towing Hook

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Tighten down all screws and nuts on transverse member 00 6 100 .

IMPORTANT: Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

NOTE: 4WD

Release bolts (1) on engine mount.

Tightening torque: 22 11 2AZ .

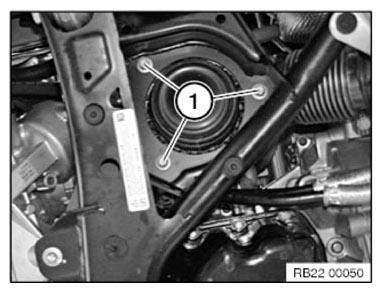

Fig 5: Engine Mount Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rear-wheel drive

Release screws (1) from both engine mounts.

Raise engine approx. 10 mm with cross member.

Tightening torque: 22 11 1AZ .

Fig 6: Engine Mounts Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe installation note!
To ensure play between engine mount and front axle support, lower the engine completely before tightening the screw connection (engine mount/front axle support).
Tightening torque: 22 11 1AZ .
