Tightening The Oil Drain Plug
Tightening The Oil Drain Plug
Replace the sealing ring.
Parts:
Sealing ring

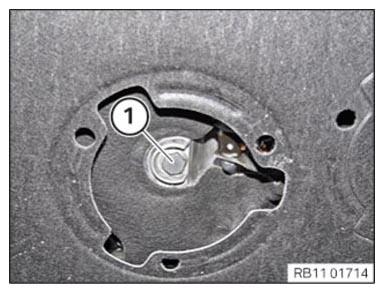

Position oil drain plug (1) on the oil sump and tighten.
TIGHTENING TORQUE SPECIFICATION
Oil drain plug
M12x16
Replace the sealing ring.
Tightening torque
25 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
If applicable, mount the service cap.
Courtesy of BMW OF NORTH AMERICA, INC.
