Location Of Anti-Tampering Screws For SCR Components (16 01 16)
Publication date: 2016-02-01Reference number: 16 01 16
LOCATION OF ANTI-TAMPERING SCREWS FOR SCR COMPONENTS
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B16 01 16, Date of Issue:
February 2016
| BMW: | F02 (7 Series Sedan); F10 (5 Series Sedan); F25 (X3); F30 (3 Series Sedan); F31 (3 Series Sports Wagon); With the N47T or N57T diesel engine |
| GROUP: | Fuel Supply Systems |
SUBJECT
Location of Anti-Tampering Screws for SCR Components
SITUATION
Anti-tampering screws are not being used for the underbody cover around the SCR metering valve.
CAUSE
Anti-tampering screws are not being replaced during service when the underbody protection panels are removed.

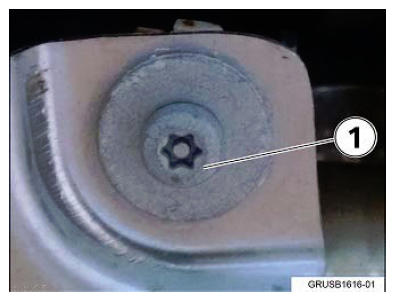

Anti-tampering screws (1).
INFORMATION

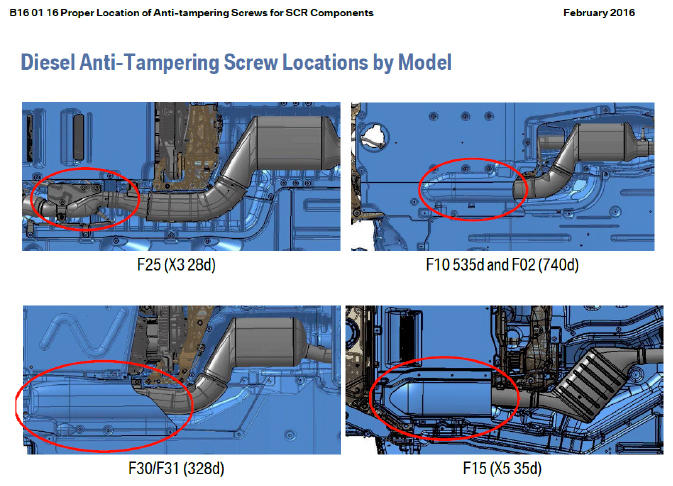

Refer to the attachment for proper location of the screws
PARTS INFORMATION
| Part Number | Description | Quantity |
|---|---|---|
| 07 14 7 367 231 | Fillister head screw | Up to 3 |
WARRANTY INFORMATION
Not applicable.
