61 13... Unlocking And Disconnecting Different Plug Connections

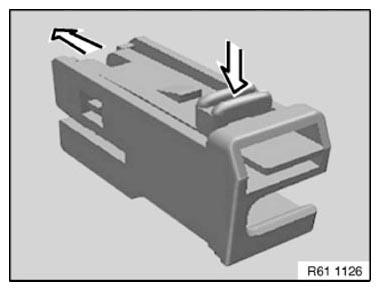

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 1: Disconnecting Plug Connection (1 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

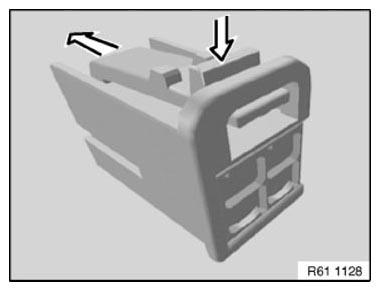

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 2: Disconnecting Plug Connection (2 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

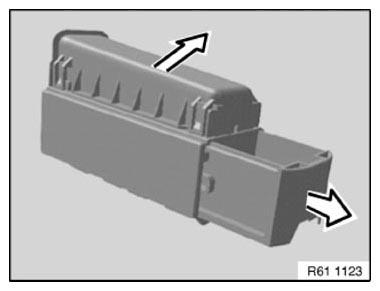

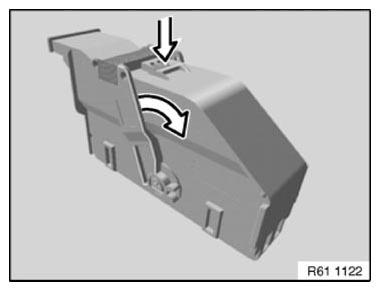

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection (3 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

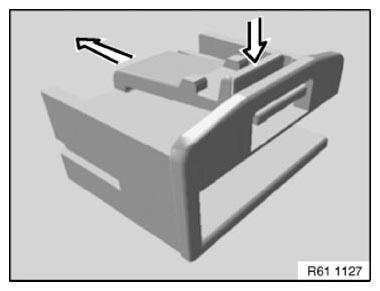

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection (4 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

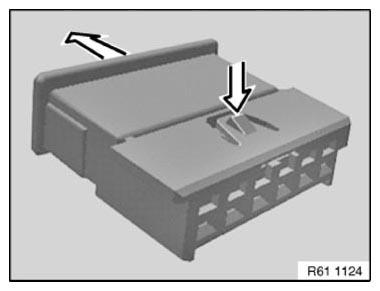

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection (5 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnecting Plug Connection (6 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection (7 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnecting Plug Connection (8 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection (9 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 10: Disconnecting Plug Connection (10 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 11: Disconnecting Plug Connection (11 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

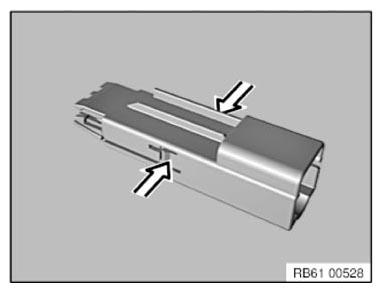

Press the lock on both sides and detach plug connection.

Fig 12: Disconnecting Plug Connection (12 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 13: Disconnecting Plug Connection (13 Of 13)

Courtesy of BMW OF NORTH AMERICA, INC.
