61 13... Repairing Ribbon Cables

WARNING: This page is about a different car, the 2013 BMW M3, 2012 BMW M3, and 2011 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 1 190

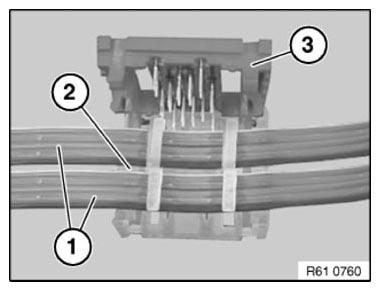

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Ribbon Cables, Connector Housing And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

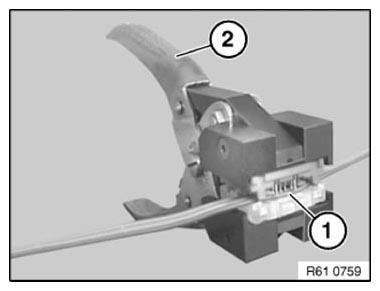

Place connector housing (1) in pliers (2) 61 1 190 .

Close pliers (2).

Fig 2: Placing Connector Housing In Tool

Courtesy of BMW OF NORTH AMERICA, INC.
