61 13... Relay Carrier

WARNING: This page is about a different car, the 2013 BMW M3, 2012 BMW M3, and 2011 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

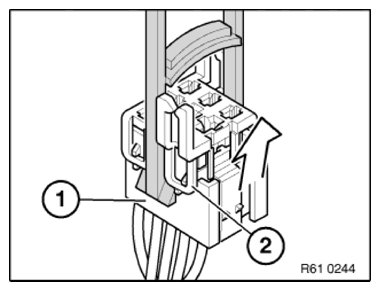

Place special tool 61 1 153 against relay carrier (1) and carefully pull in direction of arrow until the locking tabs (2) of the relay carrier are raised up.

Fig 1: Pulling Relay Carrier Locking Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

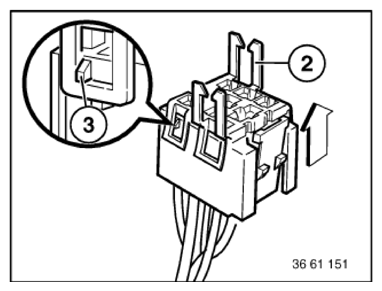

Pull relay carrier (2) in direction of arrow into the first catch (3).

Fig 2: Pulling Relay Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

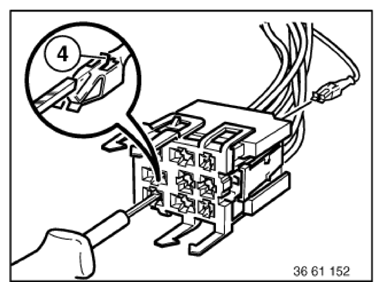

Press down arrester hook (4) of corresponding contact and pull out the cable with contact.

With special tool 61 1 136 or 61 1 137 (press out) press out dual spring contacts.

Fig 3: Pressing Down Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.
