61 13... Main Relay Connector For DME

WARNING: This page is about a different car, the 2013 BMW M3, 2012 BMW M3, and 2011 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

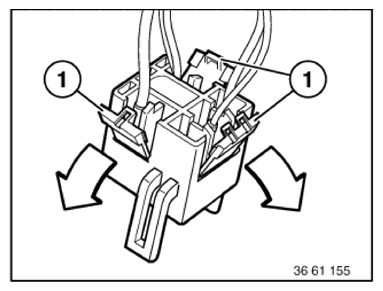

Open locking clamp (1) for the corresponding cable.

Fig 1: Removing Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

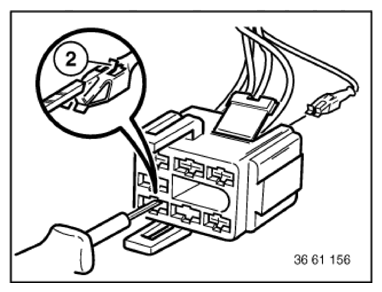

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (2) of appropriate contact and pull out cable with contact.

Fig 2: Pressing Back Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
