Individual Parts/Painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

Roof shell, front

Area specification applies to all paint stages.

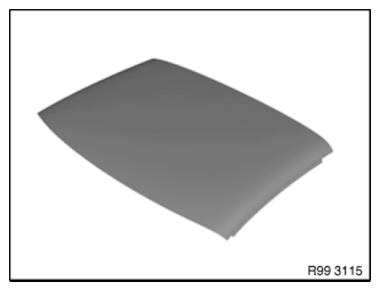

Fig 1: Identifying Roof Shell, Front

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shell, middle

Area specification applies to all paint stages.

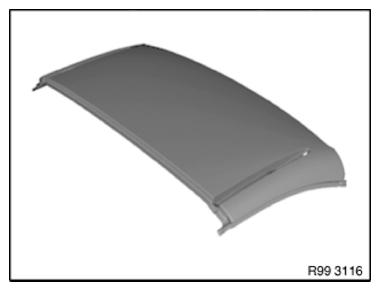

Fig 2: Identifying Roof Shell, Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shell, outer rear

Area specification applies to all paint stages.

Fig 3: Identifying Roof Shell, Outer Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shell, inner rear

Area specification applies to all paint stages.

Fig 4: Identifying Roof Shell, Inner Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 1.

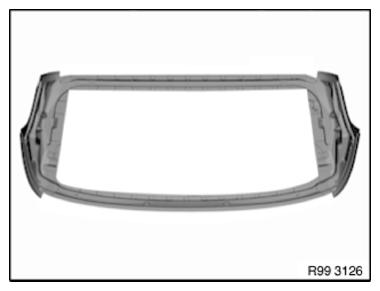

Fig 5: Identifying Roof Frame, Front

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 3.

Fig 6: Identifying Roof Frame, Front

Courtesy of BMW OF NORTH AMERICA, INC.

Rear tail panel

Area specification applies to all paint stages.

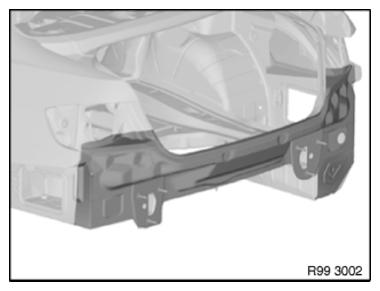

Fig 7: Identifying Rear Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Side wall, front

Area specification applies to all paint stages.

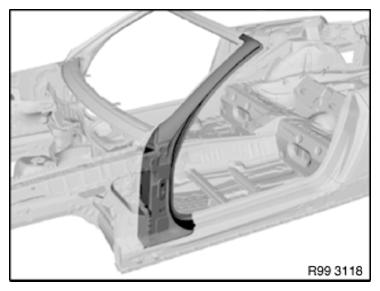

Fig 8: Identifying Side Wall, Front

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel

Area specification applies to paint stage 1.

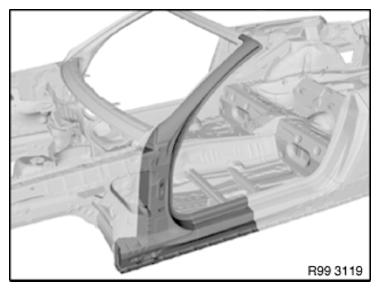

Fig 9: Identifying Rear Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel

Area specification applies to paint stage 3.

Fig 10: Identifying Rear Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

Fig 11: Identifying Cover For Entrance

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to all paint stages.

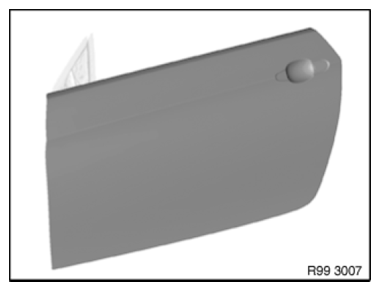

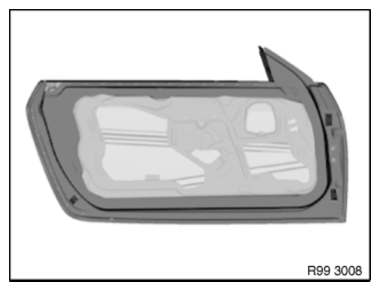

Fig 12: Identifying Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Additional area specification inner plate for paint stages 2 and 3.

Fig 13: Identifying Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Front lid

Area specification applies to all paint stages.

Additionally complete inner plate for paint stages 2 and 3.

Fig 14: Identifying Front Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid

Area specification applies to all paint stages.

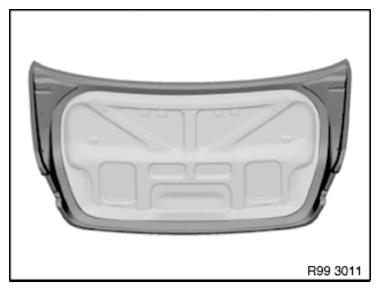

Fig 15: Identifying Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Rear lid

Additional area specification inner plate for paint stages 2 and 3.

Fig 16: Identifying Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
