Remove right luggage compartment trim panel
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

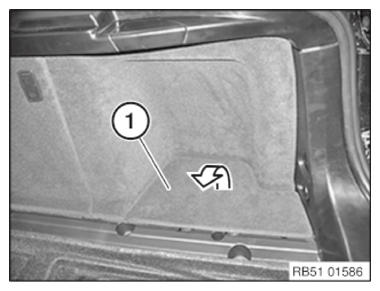

- Remove the trim panel of the luggage compartment removable panel on the right (1) in the direction of the arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

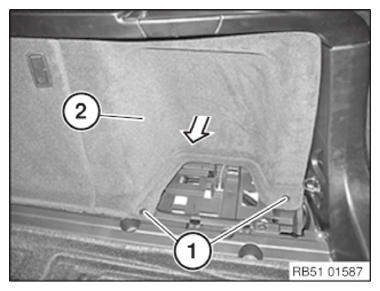

- Lever out the expanding rivets (1) with special tool 0 493 681 (64 1 020)
.
- Remove the luggage compartment trim panel on the right (2) in the direction of the arrow.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
