Partially installing the propeller shaft
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

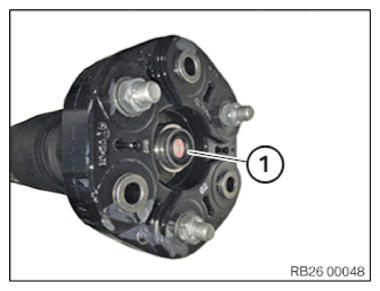

- Check the centering (1) and replace it if necessary.
- Grease centering (1).

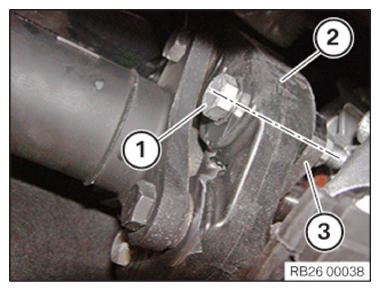

- Assemble the screw connections (1) of the flexible disc (2) and the three-hole flange (3) according to the self-affixed identification.
This should prevent a humming noise from the drive train during driving.

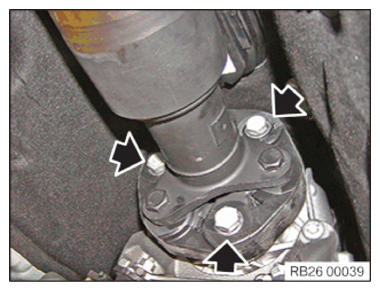

- Apply the screws (arrows) until hand-tight, do not tighten yet.

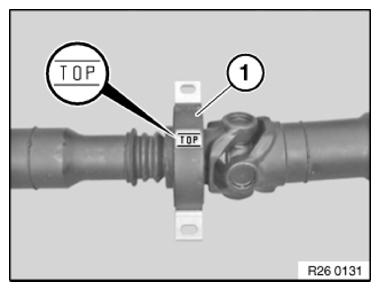

- Center mount with TOP marking:
- The center mount (1) must be installed with the TOP marking at the top in the gearbox tunnel.
- Position center mount.

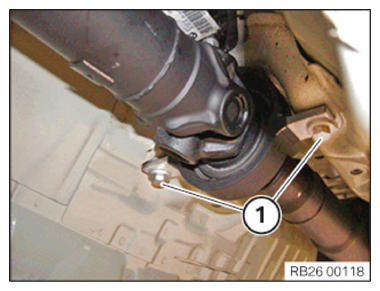

- Hand-tighten the bolts (1), but do not tighten fully.
- Replace screws.
Parts: Bolts
- Provide counter support for the bolts of the flexible disc on the nut and tighten.
TIGHTENING TORQUE SPECIFICATIONS
| Rear flexible disc to transmission output flange | ||
| M12 Replace screws. Jointing torque and angle of rotation must be observed without fail. Tightening via screw. |
Jointing torque Angle of rotation |
55 Nm 90° |

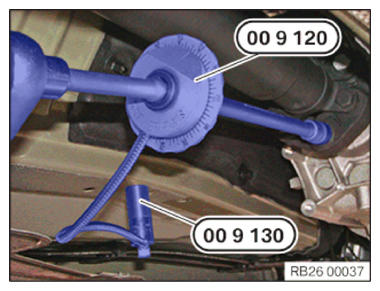

- Secure the special tool 0 490 504 (00 9 120) with the special tool 0 495 108 (00 9 130) on the vehicle underbody and continue to screw it in according to the angle of rotation.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Center mount to body | |
| M8 | 21 Nm |
