Installing the heat shield
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

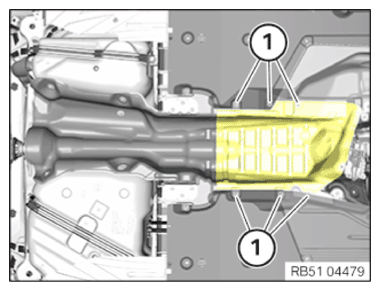

- Install the heat shield.
- Tighten the bolts (1) and nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |

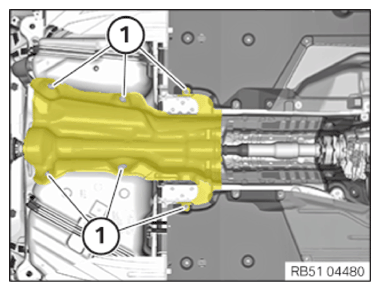

- Install the heat shield.
- Tighten the bolts (1) and nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to underbody | ||
| Screws and nuts | Tightening torque | 3 Nm |
