Installing fuel delivery line
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

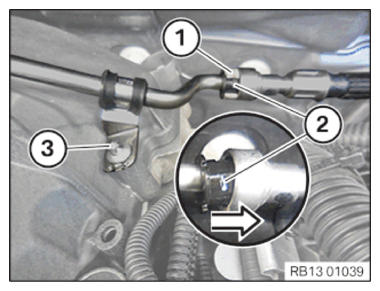

- Slide the fuel supply line in the direction of the arrow into the snap fastener (2) and lock.
The fuel supply line must be audibly engage in the snap fastener (2).
- Secure the clamp (1).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel line to cylinder head cover | ||
| 6x18 | tightening torque | 7 Nm |

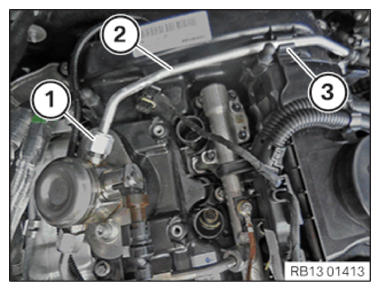

- Guide the fuel delivery line (2) in and install.
- Install rubber damper (3).
- Make sure the rubber damper (3) is fitted correct.
- Tighten the union nut (1) hand-tight.
- Tighten union nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Feed line to high pressure pump | |
| M14X1.5 | 26 Nm |
- Check fuel system for leak tightness.
