Install valve springs
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

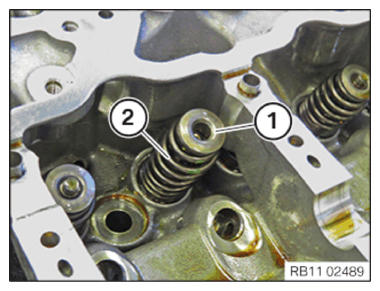

- Install the valve spring (2) and the spring plate (1).

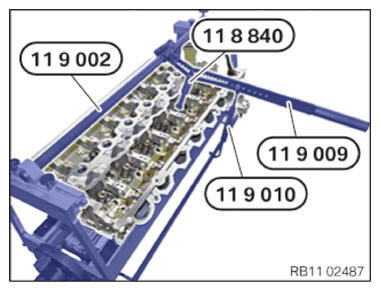

- Mount special tool 0 494 367 (11 9 002).
- Align special tool 0 494 374 (11 9 009) in direction of valve axis. Select the corresponding groove using special tool 0 496 143 (11 8 840) .
- Press down the valve spring on the spring cup at the top with special tools 0 494 374 (11 9 009)
and 0 496 143 (11 8 840)
.
The valve spring can be maintained in pressed down installation position with the special tool 0 494 375 (11 9 011) .
- Keep the valve spring pressed down with the special tool 0 496 143 (11 8 840).

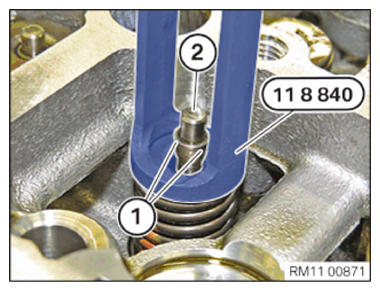

- Position the valve shims (1) on the valve (2).
- Carefully relieve the valve spring.
- Turn special tool 0 494 362 (11 9 000) and the cylinder head by 180°.

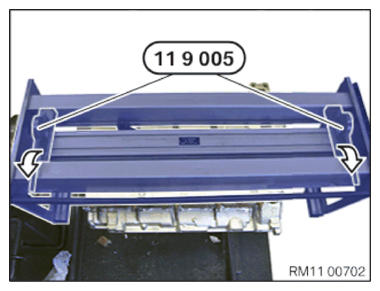

- Unlock the special tool 0 494 370 (11 9 005) in the direction of the arrow.
- Remove the special tool 0 494 371 (11 9 006) .
- Turn special tool 0 494 362 (11 9 000) and the cylinder head by 180°.
