(Install transmission)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

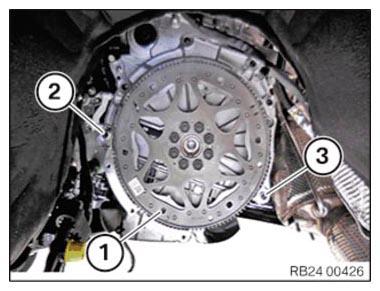

Bore hole (1) in drive plate must be accessible from recess for the starter.

Check dowel sleeves (2) and (3) for correct seating.

Replace damaged fitting sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate torque converter until bore hole in torque converter is flush with bore hole in drive plate.

Insert screws and tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

Install heat shield (2).

Tighten screw (1).

Tightening torque

Courtesy of BMW OF NORTH AMERICA, INC.

Install holder (2).

Tighten screws (1).

Tightening torque 18 20 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install acoustic cover (2).

Install cotter pins (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in holder (4) and install.

Tighten down screws (3).

Tightening torque 18 31 3AZ .

Tighten screw (2).

Tighten nut (1).

Tightening torque 18 31 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed positive battery cable (1) into clamps (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws.

Tightening torque 24 00 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw (1) and screw (2).

Remove special tool 24 4 160 from the recess on the transmission housing.

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace screws.

Crank engine with special tool 11 6 480 at the vibration damper in direction of rotation until screw (1) is visible in the recess.

Tighten all 6 bolts of torque converter with special tool 24 1 110.

Tightening torque 24 40 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 24 2 390 from sealing sleeve.

Courtesy of BMW OF NORTH AMERICA, INC.

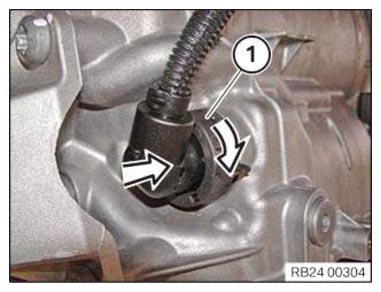

Push on plug connector (1) and lock by turning.

Operations are described in:

NOTES ON MECHATRONICS .

CAUTION: Read and comply with important note.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: It is mandatory to use the screw with washer M6x20, also see the appropriate BMW parts catalogue.

Parts: Replace sealing rings.

Install hydraulic lines (2) on transmission.

Tighten screw (1).

Tightening torque 17 22 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install ground strap (2).

Tighten screw (1).

Tightening torque 24 11 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

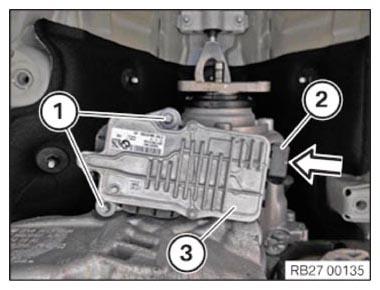

Connect connector (2) from transfer box control unit (longitudinal torque distribution) (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the transmission cross member (2).

Tighten screw (1).

Tightening torque 22 32 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (1) and tighten.

Tightening torque 22 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 23 4 050, 00 2 030 and mounting from the transmission.

Remove the tensioning strap (1) from the mounting.
