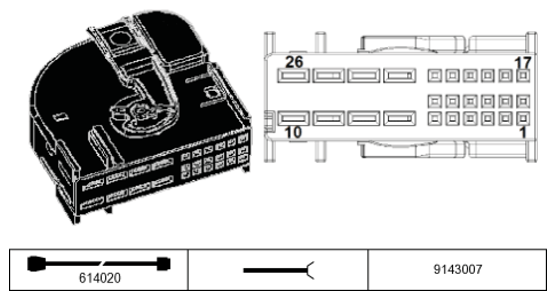

Rear Electronic Module A174*12B Connector End View
Pin Assignments At Plug Connector A174*12B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Signal Power window switch, passenger's side, rear | Power window switch, passenger's side, rear |
| 2 | E | Signal Power window switch, driver's side, rear | Power window switch, driver's side, rear |
| 3 | E | Hall sensor signal | Power window drive, passenger's side, rear |
| 4 | E | Hall sensor signal | Power window drive, passenger's side, rear |
| 5 | E | Hall sensor signal | Power window drive, driver's side, rear |
| 6 | E | Hall sensor signal | Power window drive, driver's side, rear |
| 7 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 8 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 9 | A | Activation, power window drive | Power window drive, driver's side, rear |
| 10 | A | Activation, power window drive | Power window drive, driver's side, rear |
| 11 | A | Activation Automatic soft-close drive, boot lid | Boot lid/tailgate lock |
| 12 | A | Actuation, tail light, left | Tail light, outer left |
| 13 | E | Supply, terminal 15 | Front Electronic Module |
| 14 | E | Power supply, terminal 30F | Fuse F11 |
| 15 | A | Supply, Hall sensor | Power window drive, passenger's side, rear |
| 16 | A | Supply, Hall sensor | Power window drive, driver's side, rear |
| 17 | A | Activation, flashing indicator lamp | Tail light, outer left |
| 18 | A | Activation, brake light | Auxiliary brake light |
| 19 | A | Activation, reversing light left-hand drive | Tail light, outer right |
| 19 | A | Activation, rear fog light right-hand drive | Tail light, outer right |
| 20 | A | Activation Dynamic brake light | Tail light, outer left |
| 21 | A | Activation, brake light | Tail light, outer right |
| 22 | A | Activation, rear fog light | Tail light, outer right |
| 23 | M | Ground | Ground point |
| 24 | M | Ground | Ground point |
| 25 | -- | Not used | |
| 26 | A | Supply Rear window defogger | Rear window defogger |
