51 61... Removing and installing/replacing protecting skid/mounting bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without the protective skid/mounting bracket is not permitted!
Driving without the protective skid/mounting bracket is not permitted!
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION .

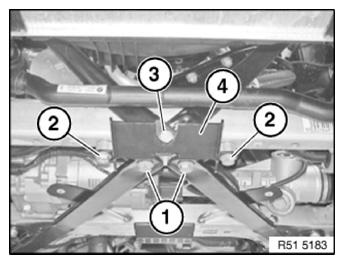

Release screws (1).
Tightening torque 51 71 10AZ .
Release screw (3).
Tightening torque 51 71 11AZ .
Release screws (2) and remove protective skid (4).
Tightening torque 51 71 12AZ .
Installation:
Replace all screws.
Middle lug of protective skid must be situated between mounting bracket and left diagonal strut.
Mounting bracket

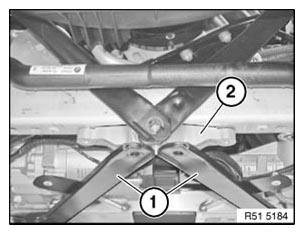

Gently pull V-struts (1) downwards and remove mounting bracket (2) towards rear.
Installation:
Make sure mounting bracket is correctly positioned.
