41 61... Checking Hinge For Engine Compartment Lid (For Vehicles With Active Pedestrian Protection System)
Necessary preliminary tasks:

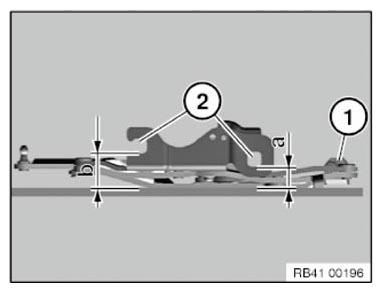

Open and close hinge (1).
Place hinge (1) on a level surface.
Check holes (2) for dimensional accuracy relative to support.
Dimension a=21 mm
Measurement b = 33 mm
| Test result |
Solution |
| Hinge is stiff |
Replace hinge |
| Faulty dimensional accuracy |
Replace hinge |
Courtesy of BMW OF NORTH AMERICA, INC.
