41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protective measures!

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink

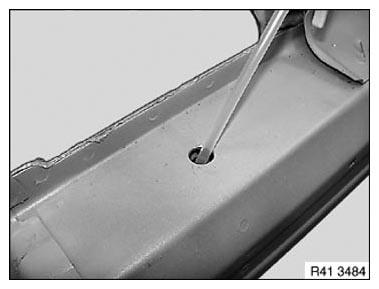

Fig 1: Drilling Rivet Head Using Larger Drill Bit
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paint damage
Knock rivet head away with a chisel

Fig 2: Removing Rivet Head Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.
Punch through rivet shank into cavity, remove if necessary

Fig 3: Identifying Rivet Shank Cavity
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paint damage if necessary

Fig 4: Identifying Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity preservation.
Follow NOTES ON CORROSION PROTECTION .
Preserving cavity

Fig 5: Preserving Cavity (Rivet Shank Removed)

Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury. Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

Fig 6: Sealing Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun

NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

Fig 7: Installing Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

Fig 8: Installing Hexagon Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread.
