PARKING LOCK RELEASE TOOL
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B04 07 15, Date of Issue:
March 2015
| BMW: | F85 (X5 M), F86 (X6 M), F15 (X5 xDrive35d), F15 (X5 xDrive50i) |
| GROUP: | Tools and Equipment |
SUBJECT
Parking Lock Release Tool
SITUATION
Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

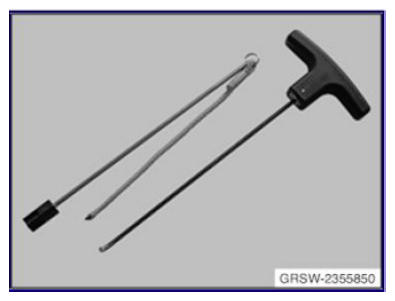

Parking Lock Release Tool
Order P/N 83 30 2 355 850
- The parking lock release tool is designed to disengage the GA8HP75Z transmission parking lock in the event of a dead battery.
- This tool is to be used in the workshop only.

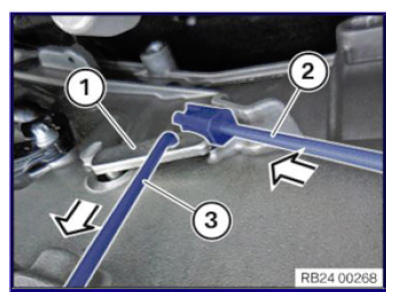

- Insert special tool (3) into the parking lock lever (1) and pull.
- Insert special tool (2) between the limit stop and the parking lock lever to unlock the transmission.
- For complete repair information on this tool, refer to ISTA Repair Manual section 24 34....
SPECIAL TOOL WARRANTY
Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:
- Go to TIS.
- Select "Tools and Equipment."
- Select "Special Tool Parts Warranty."
