Characteristic curve and setpoint values
The pressure converter is activated by a pulse-width-modulated signal. The duty cycle is between 15 and 65 % (depending on engine operation). The supply vacuum is equal to 950 mbar. The vacuum can be continuously varied depending on the duty cycle.

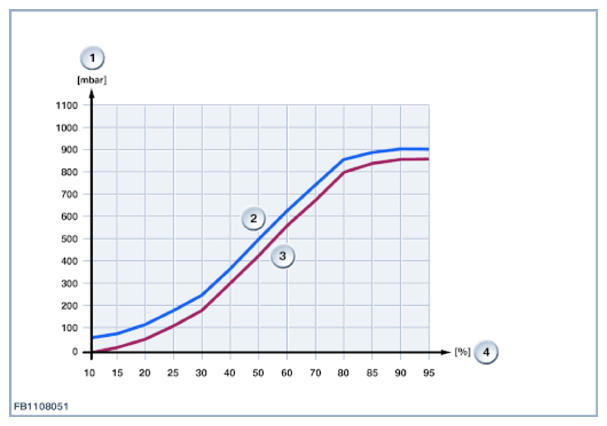

Characteristic curve valid for 950 mbar
| Index | Explanation |
|---|---|
| 1 | Vacuum activation |
| 2 | Minimum characteristic curve |
| 3 | Maximum characteristic curve |
| 4 | Duty cycle |
Observe the following setpoint values for the wastegate valve pressure converter:
| Size | Value |
|---|---|
| Voltage range | 10.8 to 16 V |
| Duty cycle (depending on engine operation) | 15 to 65% |
| Control voltage frequency | 300 Hz |
| Vacuum build-up response time | 200 ms |
| Resistance at 20°C | 9.8 to 11.2 Ω |
| Temperature range | -40°C to 140°C |
