32 33 010 Removing And Installing/Replacing Sport Steering Wheel (With Paddle Shift)
NOTE:
Chassis/wheel alignment is not
necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks:
- Remove AIRBAG UNIT .
Move wheels/sports steering wheel into straight-ahead position.

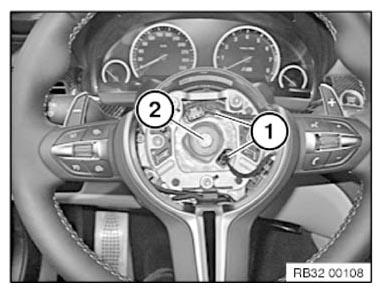

Disconnect and detach plug connections (1).
Release screw (2) and remove sport steering wheel.
Installation note:
Make sure connecting line(s) is/are correctly laid.
Tightening torque: 32 33 1AZ .
Installation note:
Before fitting sports steering wheel on steering column, ensure correct cable routing.
Align sports steering wheel by way of marking (1) to steering column marking (2) and attach.
Replacement:
- Modify SHIFT PADDLES .
- Modify both MULTIFUNCTION STEERING WHEEL SWITCHES .
- Modify DESIGN COVER for sports steering wheel at front and rear.
- Modify STEERING WHEEL MODULE CONTROL UNIT .
- If necessary modify LANE DEPARTURE WARNING engine electrical system.
