The Integrated Chassis Management system network
The following illustration shows the system network for the driving dynamics control

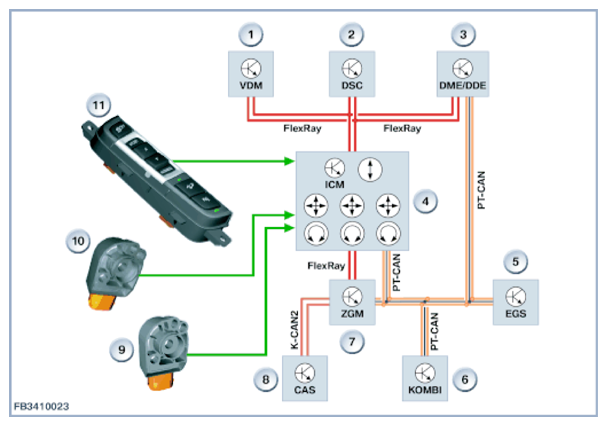

Shown F25
| Item | Explanation |
|---|---|
| 1 | Vertical dynamics management (VDM) |
| 2 | Dynamic stability control (DSC) |
| 3 | Digital Engine Electronics or Digital Diesel Electronics (DME or DDE) |
| 4 | Integrated Chassis Management (ICM) with integrated sensor system (maximum configuration) |
| 5 | Electronic transmission control (EGS) |
| 6 | Instrument panel (KOMBI) |
| 7 | Central gateway module (ZGM) |
| 8 | Car access system (CAS) |
| 9 | Rear left ride height sensor |
| 10 | Front left ride height sensor |
| 11 | Driving dynamics control switch |

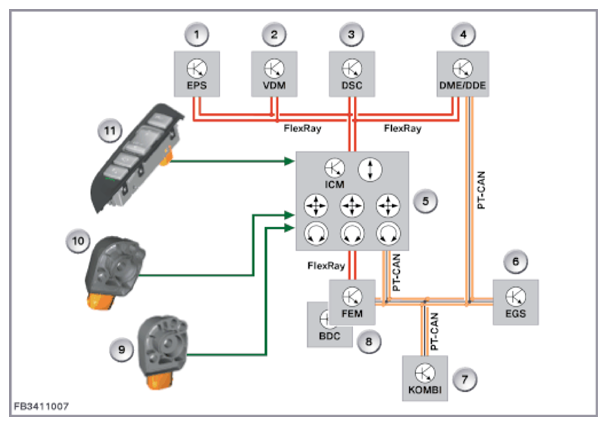

Displayed F2x, F3x, F15
| Item | Explanation |
|---|---|
| 1 | Electromechanical Power Steering (EPS) |
| 2 | Vertical dynamics management (VDM) |
| 3 | Dynamic stability control (DSC) |
| 4 | Digital Engine Electronics or Digital Diesel Electronics (DME or DDE) |
| 5 | Integrated Chassis Management (ICM) with integrated sensor system (maximum configuration) |
| 6 | Electronic transmission control (EGS) |
| 7 | Instrument panel (KOMBI) |
| 8 | Front Electronic Module (FEM) or Body Domain Controller (BDC) |
| 9 | Rear left ride height sensor |
| 10 | Front left ride height sensor |
| 11 | Driver experience switch with ECO PRO mode |
