Seat occupancy mat is kinked

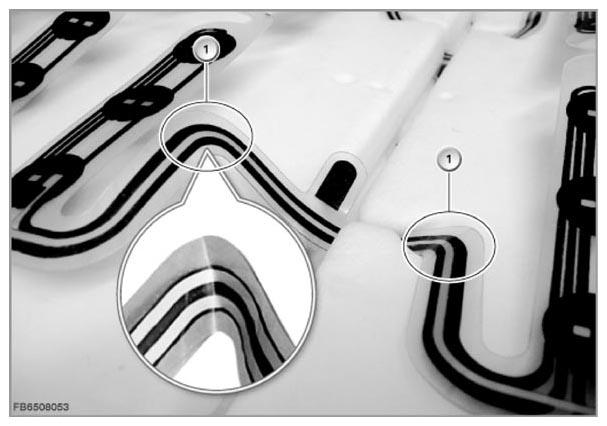

Fig 1: Identifying Conductor Path Twisted
G09909871Courtesy of BMW OF NORTH AMERICA, INC.
Index Designation
1 Conductor path twisted
