Ceramic glow plugs
The ceramic glow plugs are designed for a voltage of 7.0 Volts in calm air. During preheating, an effective on-board supply voltage of 10 Volts can be briefly applied for rapid heating. To maintain the heater plug temperature, the heater plugs are supplied with a PWM signal. This sets an effective voltage at the heater plugs that is lower than the on-board supply voltage.

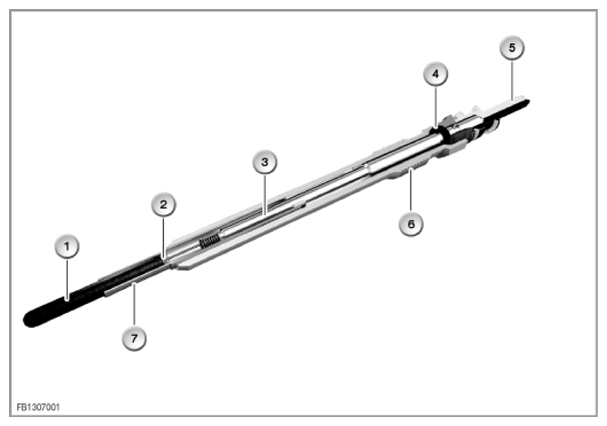

| 1 | Ceramic heating element |
| 2 | Positive terminal connection |
| 3 | Connection bolt |
| 4 | Gasket |
| 5 | Circular connector |
| 6 | Thread |
| 7 | Support tube |
