86 21... Removing plug for inside light: Notes

NOTE: Two different types of plugs are used for the inside light. Both types function in the same way, only their designs are different.

Type 1:

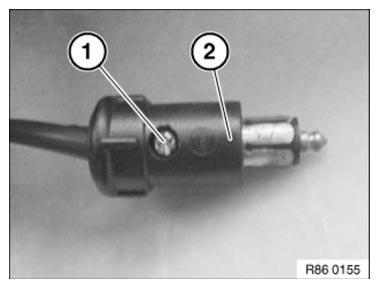

Release screw (1) and separate housing plug (2).

Fig 1: Identifying Housing Plug With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

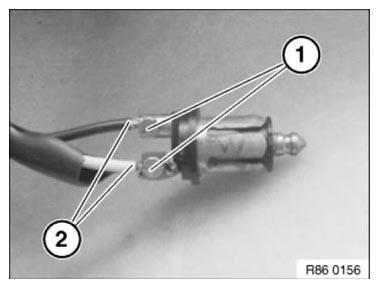

Release screws (1) and disconnect cables (2) from screw clamp.

Fig 2: Identifying Cables And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Type 2:

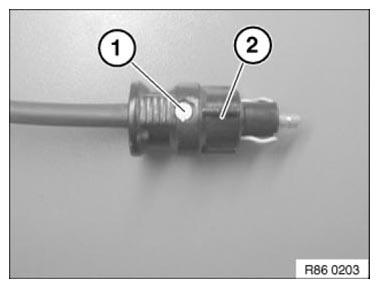

Release screw (1) and separate housing plug (2).

Fig 3: Identifying Housing Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove contact parts (1+2).
