32 31 003 Removing And Installing/Replacing Upper Section Of Steering Column Trim

Special tools required:

• 00 9 317

Move steering column in "bottom" and "extended" position.

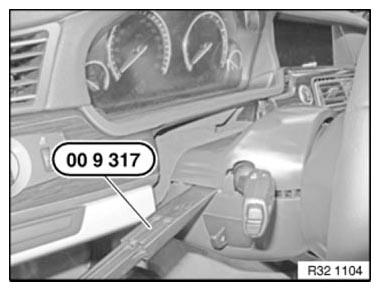

Fig 1: Unclipping Steering Column Shroud

Courtesy of BMW OF NORTH AMERICA, INC.

Pull steering column trim (1) towards front.

Unclip steering column gap cover (1) from upper section of steering column trim (2).

Remove upper section of steering column trim (2).

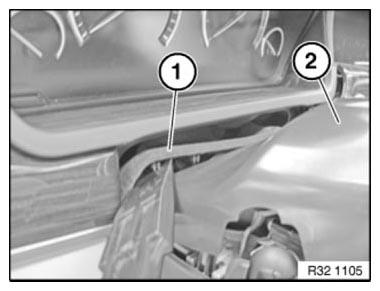

Fig 2: Steering Column Trim And Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.
